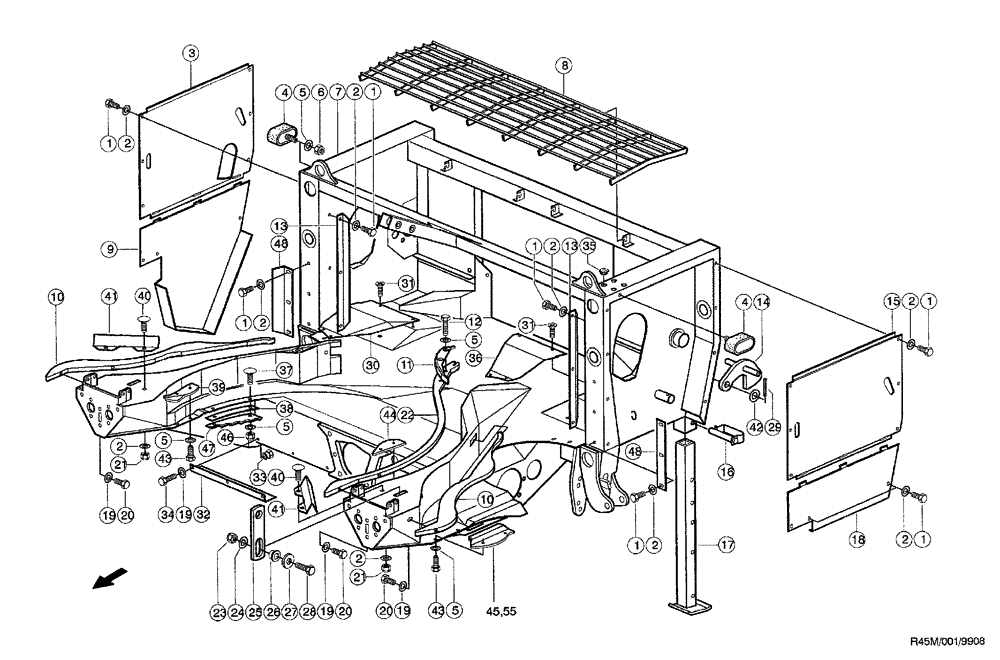

Запчасти Case IH RU450 (0001[A]) - TROUGH (R45M) (58) - ATTACHMENTS/HEADERS

1

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

26шт.

2

239387N0

WASHER

A8

30шт.

3

992451N1

SHEET

COVER protective 15 x 482 x 634 RE.

1шт.

4

991075N0

BUMPER

STOP rubber M10 60 x 30 x 30

2шт.

5

239388N0

DISC

WASHER A10

2шт.

6

825-1410

NUT,M10, Cl 8

2шт.

7

991871N4

FRAME ASSY

TROUGH

1шт.

8

991122N2

SIEVE

GRATING

1шт.

9

992452N0

SHEET

COVER protective 1.5 x 609 x 61 ORE.

1шт.

10

992178N1

GUIDE

SEGMENT feed 15 x 455 x 881

2шт.

11

992500N1

GUIDE

BOLT hex M10 x 50 ISO4017 8.8

1шт.

12

237453N0

CAPSCREW

BOLT hex M10 x 30 SK/8.8-A3C DIN933

2шт.

13

913593N0

SCRAPER

2 x 43 x 500

2шт.

14

991936N0

HOOK

catch

2шт.

15

992449N1

SHEET

COVER protective 1.5 x 482 x 63411. OBEN

1шт.

16

978216N0

LARGE PIN

PIN, LARGE PLUG 12 x 96

2шт.

17

991104N1

STAND

FOOT support

2шт.

18

992450N0

SHEET

COVER protective 1.5 x 239 x 610

1шт.

19

239393N1

WASHER

B8

6шт.

20

233259N0

SCREW

BOLT hex M8 x 20 MK/8.8-A3C ISO4017

6шт.

21

238132N0

LOCK NUT

VM8/8-A3C

8шт.

22

992179N2

BAR

SEGMENT feed m 15 x 466 x 1180

1шт.

23

238234N0

NUT

lock VM12

4шт.

24

239389N0

WASHER

A12

2шт.

25

991462N1

LARGE PLATE

PLATE, LARGE EYE lift 50 x 10 x 190

2шт.

26

909945N1

BUSHING

SLEEVE

2шт.

27

3222553

WASHER 13 x 40 x 6

2шт.

28

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

2шт.

29

236969N0

COTTER PIN

roll 4 x 28A/ST DIN8752

2шт.

30

996628N1

WEAR PLATE

feed

1шт.

31

97010295

SCREW

countersunk M8 x 20 DIN7991 8.8

12шт.

32

992150N0

WEAR PLATE

ANGLE 4 x 82 x 420

2шт.

33

215913N0

NUT

hex rivet M8 KL-L 3-5.5

6шт.

34

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

6шт.

35

211351N0

PLUG

closing D=11.7GPN300

8шт.

36

996629N1

WEAR PLATE

feed

1шт.

37

502511N0

SCREW

flat-round-head M 10 x 25

2шт.

38

996640N0

BLOCK

SHIM 2.5 x 102 x 203

2шт.

39

996601N0

LARGE PLATE

PLATE, LARGE BAR shear 8 x 67 x 190

1шт.

40

236438N0

SCREW

flat-round-head M8 x 16 x 10/8.8-A3C DIN603

4шт.

41

991173N3

PROTECTIVE COVER

1.5 x 131 x 211

2шт.

42

234291N0

DISC

WASHER 17 x 26 x 2

2шт.

43

239302N0

SCREW

BOLT hex M10 x 16 MK/8.8-A3C DIN933

8шт.

44

992175N0

KNIFE WEAR PLATE

BAR feed shear 18 x 66 x 178

2шт.

45

992176N0

KNIFE WEAR PLATE

BAR feed shear 18 x 132 x 238

1шт.

46

237947N0

NUT

lock VM10

2шт.

47

996637N0

KNIFE

1шт.

48

991329N0

PROTECTION PLATE

PLATE guide 4 x 82 x 294

2шт.

55

992177N0

KNIFE WEAR PLATE

BAR feed shear r 8 x 132 x 238

1шт.
