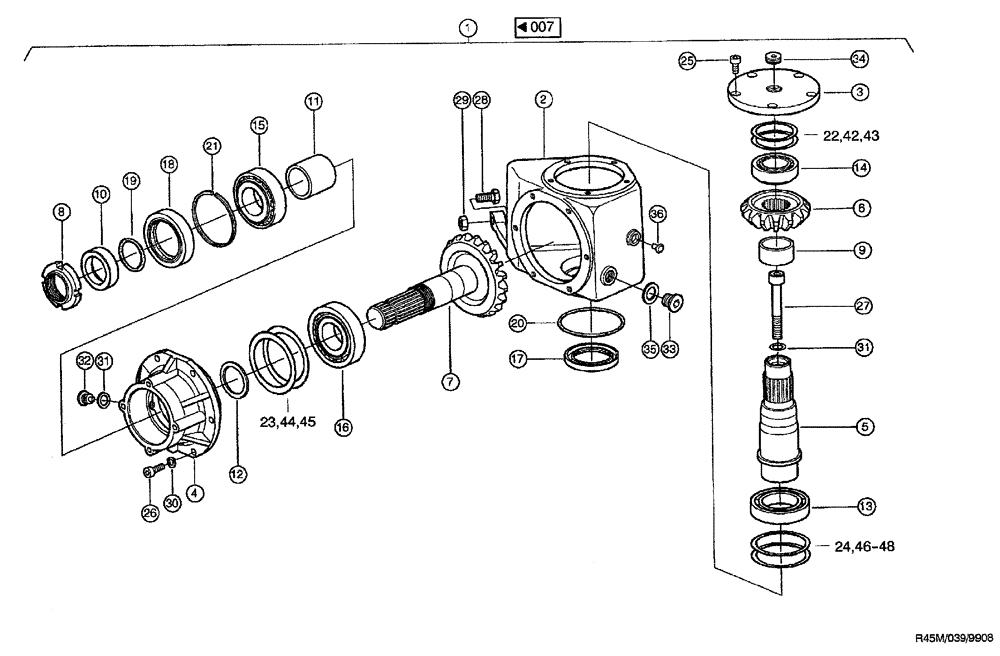

Запчасти Case IH RU450 (0039) - ANGULAR GEARBOX (R45M) (58) - ATTACHMENTS/HEADERS

1

992321N0

TRANSMISSION

GEAR angular

1шт.

2

935713N0

HOUSING

1шт.

3

935714N0

COVER

bearing

1шт.

4

935715N0

FLANGE

bearing

1шт.

5

935716N0

DRIVE SHAFT

1шт.

6

935717N0

CONE PINION

conical

1шт.

7

935718N0

PINION SHAFT

1шт.

8

243001N0

SLOTTED NUT

grooved M40 x 1.5 DIN1804 17H

1шт.

9

935719N0

SPACER

bushing

1шт.

10

935720N0

RACE

ball

1шт.

11

935721N0

SPACER

bushing

1шт.

12

935722N0

SPACER, RING

1шт.

13

235903N0

BEARING ASSY

grooved 6010 DIN625

1шт.

14

243654N0

BEARING ASSY

taper 32007 x DIN720

1шт.

15

235988N0

BEARING ASSY

taper 30208 DIN720

1шт.

16

243684N0

BEARING, ROLLER

taper 30308 DIN720

1шт.

17

01121278

SEAL

shaft A50 x 72 x 8 DIN3760 NBR

1шт.

18

01120976

PACKING RING

SEAL shaft AS58 x 80 x 10 DIN3760 NBR

1шт.

19

238780N0

SEAL

O-RING 39.2 x 3 DIN3771 N-NBR70

1шт.

20

211339N0

SEAL

O-RING 85 x 3 DIN3771 N-NBR70

1шт.

21

211586N0

RING

snap SB80

1шт.

22

234399N0

WASHER

SHIM 50 x 62 x 0.1 DIN988 ST

1шт.

23

97020297

SHIM

70 x 90 x 0.1 DIN988

1шт.

24

215155N1

WASHER

SHIM 70 x 79 x 0.1

1шт.

25

864-8016

HEX SOC SCREW,M8 x 16mm, Cl 8.8

Cheese-head

5шт.

26

864-8020

HEX SOC SCREW,M8 x 20mm, Cl 8.8

Cheese head, DIN 912

6шт.

27

962-12090

HEX SOC SCREW,M12 x 90mm, Cl 10.9

cheese-head M12 x 90 DIN912 10.9

1шт.

28

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

1шт.

29

825-1410

NUT,M10, Cl 8

1шт.

30

235132N1

WASHER

spring 8

6шт.

31

04101407

GASKET

SEAL A14 x 18 DIN7603 CU

1шт.

32

239263N0

SCREW

plug M14 x 1.5

1шт.

33

244342N0

SCREW

locking M18 x 1.5 DIN908 9SMNPB28K

1шт.

34

214161N0

SCREW

locking M20 x 1.5 DIN906 9SMNPB28K

1шт.

35

04101608

GASKET

seal A18 x 22 DIN7603 CU

1шт.

36

935723N0

BREATHER

valve

1шт.

42

234412N0

WASHER

SHIM 50 x 62 x 0.3 DIN988 ST

1шт.

43

234424N0

WASHER

SHIM 50 x 62 x 0.5 DIN988 ST

1шт.

44

97022200

SHIM

70 x 90 x 0.3 DIN988

1шт.

45

97022237

WASHER

SHIM 70 x 90 x 0.5 DIN988

1шт.

46

215156N0

WASHER

SHIM 70 x 79 x 0.3

1шт.

47

215157N0

WASHER

SHIM 70 x 79 x 0.5

1шт.

48

211656N0

WASHER

SHIM 70 x 79 x 1

1шт.
