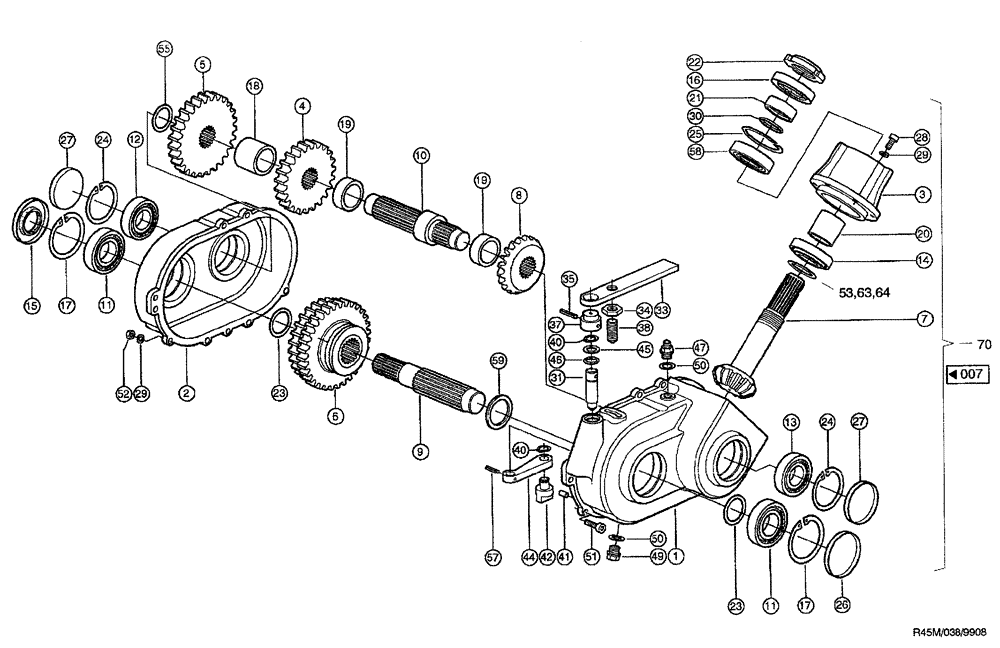

Запчасти Case IH RU450 (0038[A]) - SPUR GEARBOX (R45M) (58) - ATTACHMENTS/HEADERS

1

935728N0

HOUSING

1шт.

2

935729N0

HOUSING

1шт.

3

935730N0

COVER

CAP

1шт.

4

935731N0

WHEEL GEAR

Z=23

1шт.

5

935732N0

WHEEL GEAR

Z=27

1шт.

6

935733N0

WHEEL GEAR

twin Z=28/32

1шт.

7

935734N0

PINION SHAFT

Conical Z=13

1шт.

8

935735N0

CONE PINION

GEAR bevel Z=20

1шт.

9

935736N0

DRIVE SHAFT

1шт.

10

935737N0

DRIVE SHAFT

1шт.

11

238963N0

BEARING, ROLLER

cylindrical NJ208E TVP2 DIN5412

2шт.

12

03683354

BEARING ASSY

cylindrical NJ207E TVP2 DIN5412

1шт.

13

03670671

BEARING, ROLLER

taper 30207 DIN720

1шт.

14

235988N0

BEARING ASSY

taper 30208 DIN720

1шт.

15

213411N0

SEAL

shaft AS40 x 80 x 10 DIN3760 NBR

1шт.

16

01120976

PACKING RING

SEAL shaft AS58 x 80 x 10 DIN3760 NBR

1шт.

17

800-2180

SNAP RING,M80, Int

2шт.

18

935739N0

TUBE SPACER

1шт.

19

935739N0

TUBE SPACER

2шт.

20

935738N0

TUBE SPACER

1шт.

21

935740N0

RING

RING

1шт.

22

935741N0

SAFETY NUT

lock M40 x 1.5 DIN936 ST

1шт.

23

97020273

SHIM

40 x 50 x 1.O DIN988 ST

4шт.

24

800-2172

SNAP RING

72 x 2.5 FST, DIN472, FST

2шт.

25

800-2180

SNAP RING,M80, Int

1шт.

26

939596N0

VANEUM GAUGE

COVER 80 x 8

1шт.

27

921230N0

VANEUM GAUGE

COVER 72 x 9

2шт.

28

864-10025

HEX SOC SCREW,M10 x 25mm, Cl 8.8

cheese-head M10 x 25 DIN912 8.8

6шт.

29

03253568

WASHER, LOCK

spring 10 CN201104

15шт.

30

213748N0

O-RING

40 x 2.5 DIN3771 N-NBR70

1шт.

33

935744N0

CONTROL LEVER

GEAR-SHIFT

1шт.

34

829-4420

THIN NUT,M20 x 2.5, Cl 05

1шт.

35

235666N2

PIN

roll 6 x 408 DIN8752 ST

1шт.

38

214162N0

ROD,THREADED

THREADED ROD piece M20 x 40/52N

1шт.

40

800-1120

SNAP RING,M20, Ext

DIN471 FST

2шт.

41

214164N0

DOWEL

PIN plain 10H8 x 16 DIN7ST

2шт.

42

935742N0

MOVING CLUTCH DOG

GATE gear shift

1шт.

44

935743N0

LEVER

swivel

1шт.

45

238312N0

WASHER

thrust 820 x 28 DIN988 ST

1шт.

46

211744N0

SEAL

O-RING 20.22 x 3.53

1шт.

47

214166N0

SCREW

fill-in M16 x 1.5

1шт.

48

864-10030

HEX SOC SCREW,M10 x 30mm, Cl 8.8

Cheese-head M10 x 30 DIN912 8.8

2шт.

49

214165N0

SCREW

locking M16 x 1.5 DIN910 9SMNPB28K

1шт.

50

235786N0

SEAL ASSY.

A16 x 22 x 1.5 DIN7603 CU

2шт.

51

864-10045

HEX SOC SCREW,M10 x 45mm, Cl 8.8

Cheese-head

8шт.

52

825-1410

NUT,M10, Cl 8

8шт.

53

97020272

RING

SHIM 40 x 50 x 0.3 DIN988 ST

1шт.

55

234431N0

RING ASSY.

SHIM 35 x 45 x 1 DIN988 ST

2шт.

57

244564N0

COTTER PIN

roll 3 x 32A DIN8752 ST

1шт.

58

233281N0

BEARING, BALL

grooved 6208-2RS-C4

1шт.

59

212680N0

THRUST RING

washer S48 x 60 DIN988 ST

1шт.

63

97022191

SHIM

40 x 50 x 0.5 DIN988 ST

1шт.

64

97020273

SHIM

40 x 50 x 1.0 DIN988 ST

1шт.

70

991934N0

TRANSMISSION

GEARBOX

1шт.
