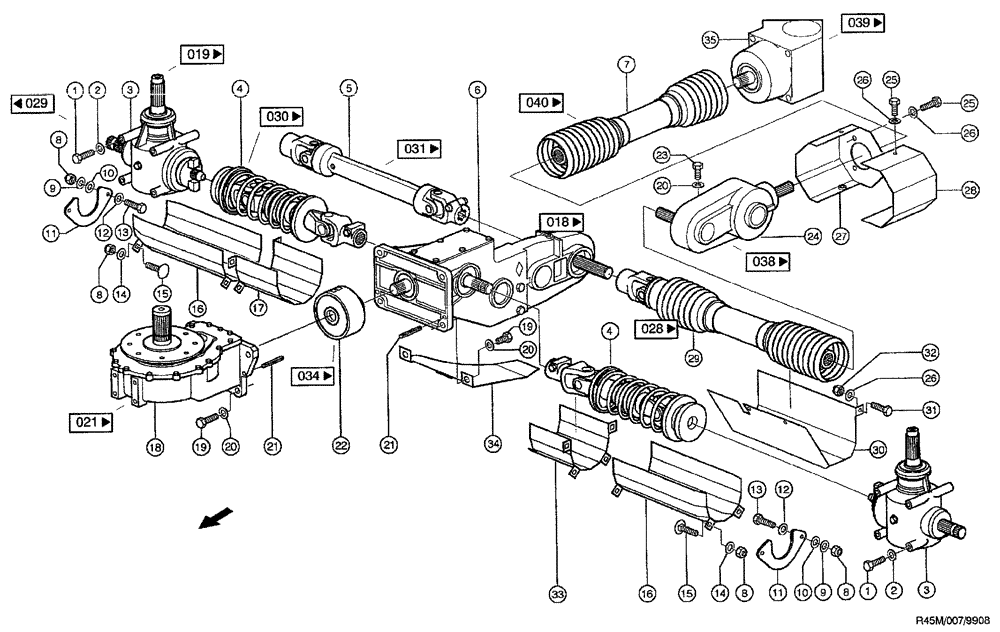

Запчасти Case IH RU450 (0007[A]) - DRIVE, MIDDLE (R45M) (58) - ATTACHMENTS/HEADERS

1

239049N0

SCREW

BOLT hex M12 x 30 MK/8.8-A3C ISO4017

8шт.

2

239389N0

WASHER

A12

16шт.

3

991020N1

TRANSMISSION

GEARBOX conveyor 1=1.818:1

2шт.

4

991124N2

COUPLING

DRIVE SHAFT universal

2шт.

5

991125N1

COUPLING

DRIVE SHAFT universal

2шт.

6

991028N0

TRANSMISSION

GEARBOX main 1=1:1.124/1.36

1шт.

7

991944N0

COUPLING

DRIVE SHAFT universal W2400-SD25

1шт.

8

237947N0

NUT

lock VM10

16шт.

9

234284N0

WASHER

13 x 30.5 x 2

4шт.

10

234227N0

WASHER

13 x 30.5 x 1

4шт.

11

990790N0

SHEET

PLATE fork 105 x 197 x 6

2шт.

12

239388N0

DISC

WASHER A10

4шт.

13

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

4шт.

14

239394N1

WASHER

WASHER B10

12шт.

15

7755697

SCREW Flat-round-head M10 x 30/8.8-A3C DIN603

12шт.

16

991189N1

FENDER ASSY.

GUARD clutch 2 x 323 x 391

2шт.

17

991274N1

PROTECTION PLATE

GUARD r,u 2 x 189 x 323

1шт.

18

991578N0

TRANSMISSION

DRIVE rotor

1шт.

19

238952N0

CAPSCREW

BOLT hex M16 x 45MK DIN933 8.8

16шт.

20

239391N0

WASHER

WASHER A16

28шт.

21

233892N0

DOWEL

PIN roll 12 x 45A DIN8752

8шт.

22

991128N1

COUPLING

CLUTCH cut-out M=780NM +-8%

2шт.

23

614-16030

BOLT,Hex, M16 x 2 x 30mm, Cl 8.8, Full Thd

ISO 4017

4шт.

24

991934N0

TRANSMISSION

GEARBOX

1шт.

25

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

8шт.

26

239387N0

WASHER

A8

8шт.

27

992322N0

PROTECTION PLATE

PLATE guard k AUSSEN

1шт.

28

992325N0

PROTECTION PLATE

PLATE guard k, i

1шт.

29

991923N1

COUPLING

DRIVE SHAFT universal W2300-SD15Z

1шт.

30

991994N0

PROTECTION PLATE

SHAFT protection 2 x 360 x 449

1шт.

31

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

32

238132N0

LOCK NUT

VM8/8-A3C

1шт.

33

991273N1

PROTECTION PLATE

GUARD I, u 2 x 147 x 323

1шт.

34

992172N0

WEAR PAD

SHOE skid

1шт.

35

992321N0

TRANSMISSION

GEAR angular

1шт.
