Запчасти Case IH TWO ROW (011) - SHIELDS ASSEMBLY - 38" ROW

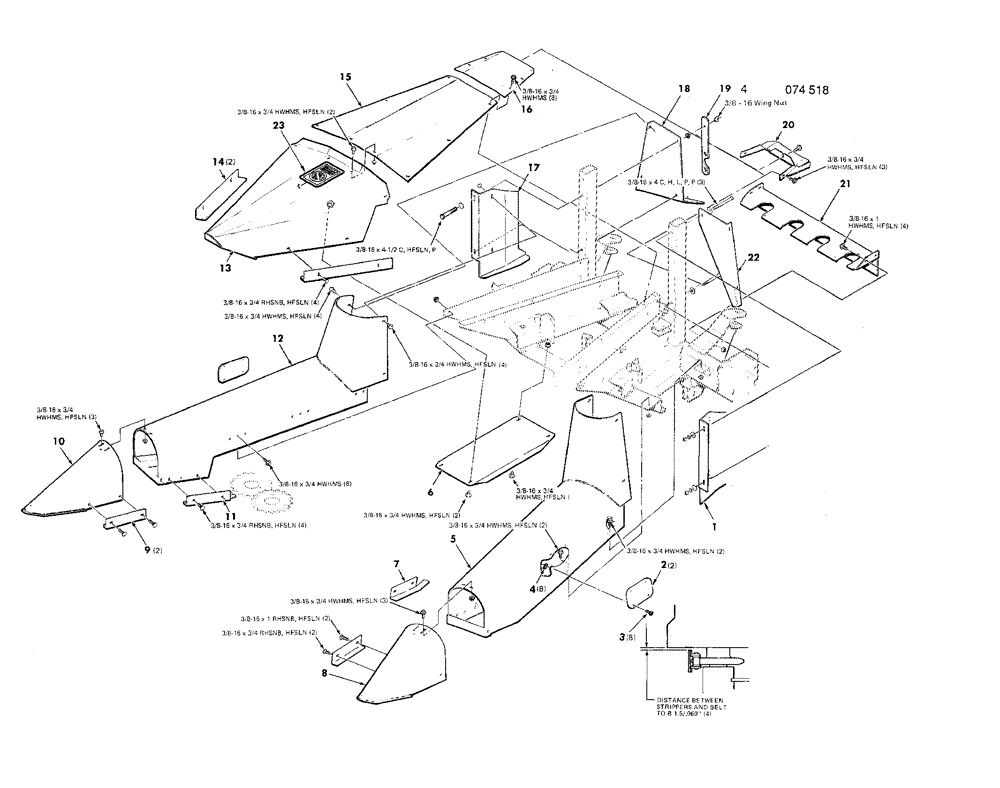

Схема запчастей Case IH TWO ROW - (011) - SHIELDS ASSEMBLY - 38" ROW
4
11
19
13
9
18
16
21
10
3
20
8
15
7
17
12
22
6
23
1
2
14
5

Артикул

Название

Примечание

Количество

1

6535058

DEFLECTOR

rear, left

1шт.

2

389668

PLATE

COVER

2шт.

3

66084

SCREW

a cross recess pan head thread forming thread tapping, 5/8-14

8шт.

4

74518

NUT

speed, 14

8шт.

5

6534853

DIVIDER ASSY.

left

1шт.

6

6535082

SUPPORT

snout

1шт.

7

6535124

ANGLE

wear, left

1шт.

8

6295133

DEFLECTOR

NOSE divider, left

1шт.

9

6534267

ANGLE

wear, front

2шт.

10

6295166

DEFLECTOR

NOSE divider, right

1шт.

11

6534259

ANGLE

wear, right

1шт.

12

6534028

DIVIDER ASSY.

right

1шт.

13

6534911

SHIELD

snout, center

1шт.

14

6535116

ANGLE

snout, center

2шт.

15

6534978

PANEL

island, rear

1шт.

16

6534994

PLATE

center island, rear

1шт.

17

6535066

DEFLECTOR

rear, right

1шт.

18

6534242

BRACE

divider, right

1шт.

19

1162023

SPECIAL WRENCH

1шт.

20

6535025

STRIPPER

center

1шт.

21

6535108

SHIELD

gear

1шт.

22

6535074

BRACE

divider, left

1шт.

23

7178189

DECAL

1шт.

7703523

BOLT,Hex, 3/8" - 16 x 4", Gr 5

SCREW cap, 3/8-16 x 4

3шт.

701714

BOLT,Hex, 3/8" - 16 x 4 1/2", Gr 5

SCREW cap, 3/8-16 x 4-1/2

1шт.

7700065

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

round head square neck, 3/8-16 x 3/4

10шт.

700047

BOLT

round head square neck, 3/8-16 x 1

2шт.

7883374

SCREW,Hex Washer, 3/8" - 16 x 3/4"

hex washer head machine, 3/8-16 x 3/4

41шт.

7883382

BOLT,Hex, 3/8" - 16 x 1", Gr 120M

SCREW hex washer head machine, 3/8-16 x 1

4шт.

704361

NUT, WING

3/8-16

1шт.

Выбрано товаров: 30
