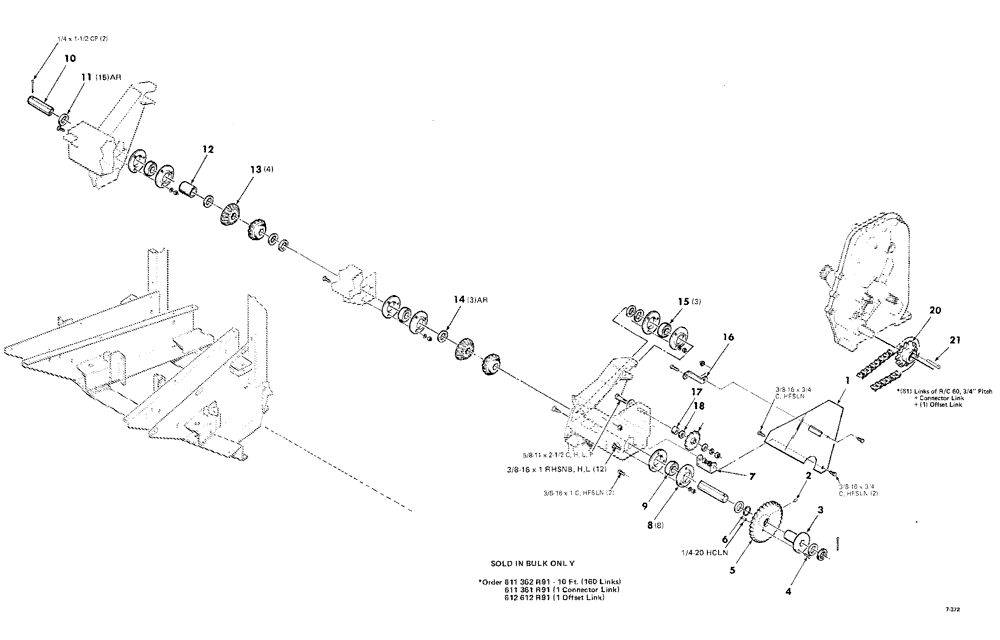

Запчасти Case IH TWO ROW (013) - DRIVE ASSEMBLY - 38" ROW

1

6534846

SHIELD

CHAIN

1шт.

2

77032

FITTING

zerk, 1/4-28

1шт.

3

6295802

HUB

1шт.

4

7703473

BOLT,Hex, 1/4" - 20 x 1 1/4", Gr 5

shear (1/4-20 x 1-1/4 capscrew Gd 5)

1шт.

5

6295786

SPROCKET ASSY.

60-P, 34-tooth

1шт.

6

852244

RING, SNAP

RING SNAP retainer

1шт.

7

6506331

STRAP

1шт.

8

50534

FLANGED BEARING

bearing

8шт.

9

713172

SPHERICAL BEARING,1" ID x 62 mm OD x 24 mm

(hex bore)

1шт.

10

6295778

SHAFT

drive, hex

1шт.

11

52266

WASHER

BUSHING gauge machinery, 1-1/4 x 14

15шт.

12

6535181

SPACER

long, 1-1/8

1шт.

13

7745540

GEAR

bevel (hex bore)

4шт.

14

495-81205

WASHER,32.54mm ID x 50.8mm OD x 1.7mm Thk

BUSHING gauge machinery, 1-1/4 x 18

3шт.

15

7713605

BALL BEARING,25.88 mm ID x 62.1 mm OD x 23.98 mm

bearing (hex bore)

3шт.

16

6506349

STRAP

shield

1шт.

17

378521

SPACER

long, 5/16

1шт.

18

52233

BUSHING

gauge machinery, 5/8 x 14

2шт.

19

89235

SPROCKET ASSY.

idler, 60-P, 13-tooth

1шт.

20

700708553

SPROCKET ASSY.

60-P, 14-tooth

1шт.

21

61952

KEY

gib, 1/4 x 1/4 x 1-3/4

1шт.

703199

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

SCREW cap, 3/8-16 x 3/4

3шт.

703249

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

7701659

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 5

SCREW cap, 5/8-11 x 2-1/2

1шт.

700047

BOLT

round head square neck, 3/8-16 x 1

12шт.

430-4214

hex center lock, 1/4-20

1шт.
