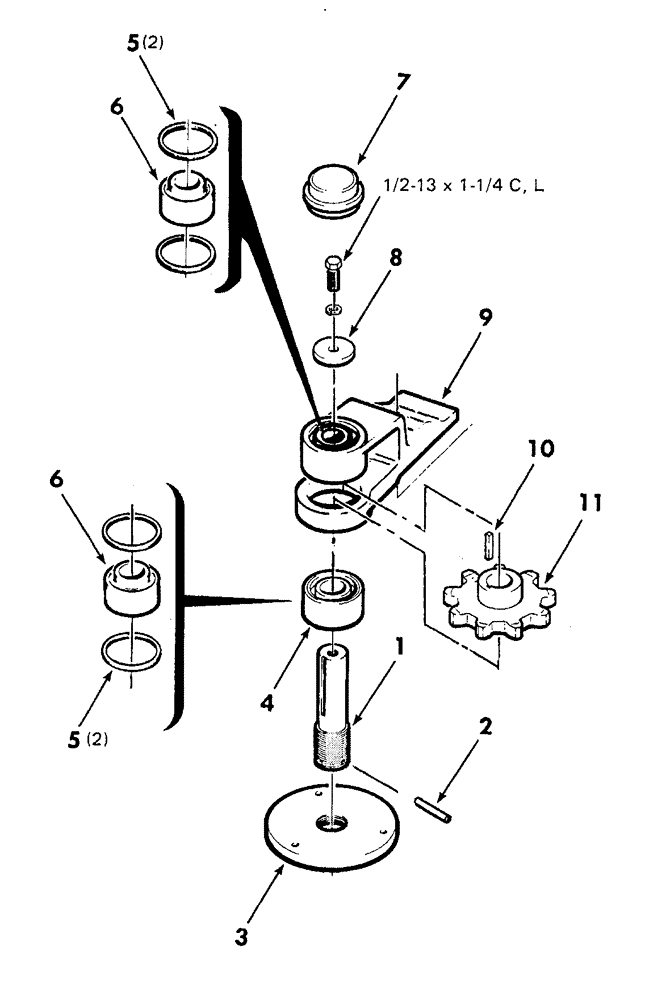

Запчасти Case IH TWO ROW (006) - DISC CUTOFF (OUTER LEFT) HOUSING ASSEMBLY

1

6535157

SHAFT

vertical, left

1шт.

2

38-11632

LOCK PIN,1/4" x 2", Slotted

1/4" x 2", Slotted

1шт.

3

6535140

LARGE PLATE

PLATE, LARGE left

1шт.

4

6535165

NUT

left

1шт.

5

052035

RING, SNAP

RING SNAP

4шт.

6

7713597

BALL BEARING,31.763 mm ID x 62 mm OD x 36.513 mm

2шт.

7

26930

CAP

hub

1шт.

8

282269

WASHER

1шт.

9

6534333

BEARING ASSY

ASSEMBLY and housing

1шт.

10

6534358

BEARING ASSY

ASSEMBLY lower

1шт.

11

61713

KEY

1/4 x 1/4 x 1-3/8

1шт.

12

850206

DRIVE SPROCKET

9-tooth

1шт.

7701188

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW cap, 1/2-13 x 1-1/4

1шт.
