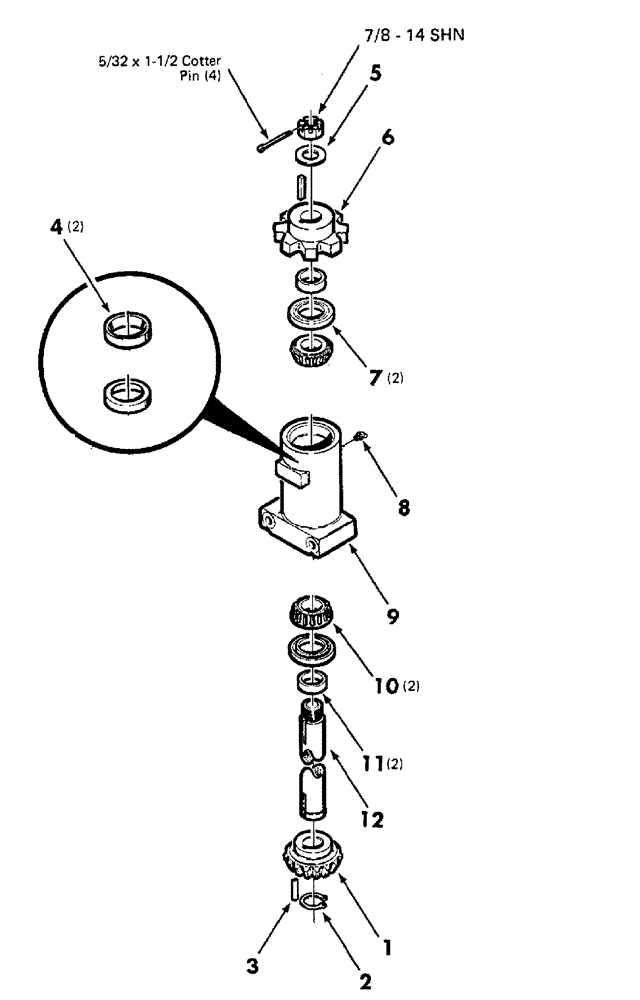

Запчасти Case IH TWO ROW (003) - DRIVE (GRIPPER CHAIN) HOUSING ASSEMBLY

1

7893480

GEAR, BEVEL

BEVEL GEAR

1шт.

2

852137

RING, SNAP

RING SNAP external

1шт.

3

61713

KEY

1/4 x 1/4 x 1-3/8

2шт.

4

711242

BEARING CUP

2шт.

5

7705429

WASHER,7/8", SAE

NPW, 5/8

1шт.

6

849851

DRIVE SPROCKET

8-tooth

1шт.

7

844993

OIL SEAL

grease

2шт.

8

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

zerk, 1/4-28 x 45°

1шт.

9

6182232

BEARING ASSY

(with bearing cups)

1шт.

10

711507

ROLLER BEARING,31.77 mm ID x 16.764 mm

2шт.

11

6458160

SPACER

long, 7/16

1шт.

12

6534499

SHAFT

vertical

1шт.

7774607

JAM NUT

slotted hex jam, 7/8-14

1шт.
