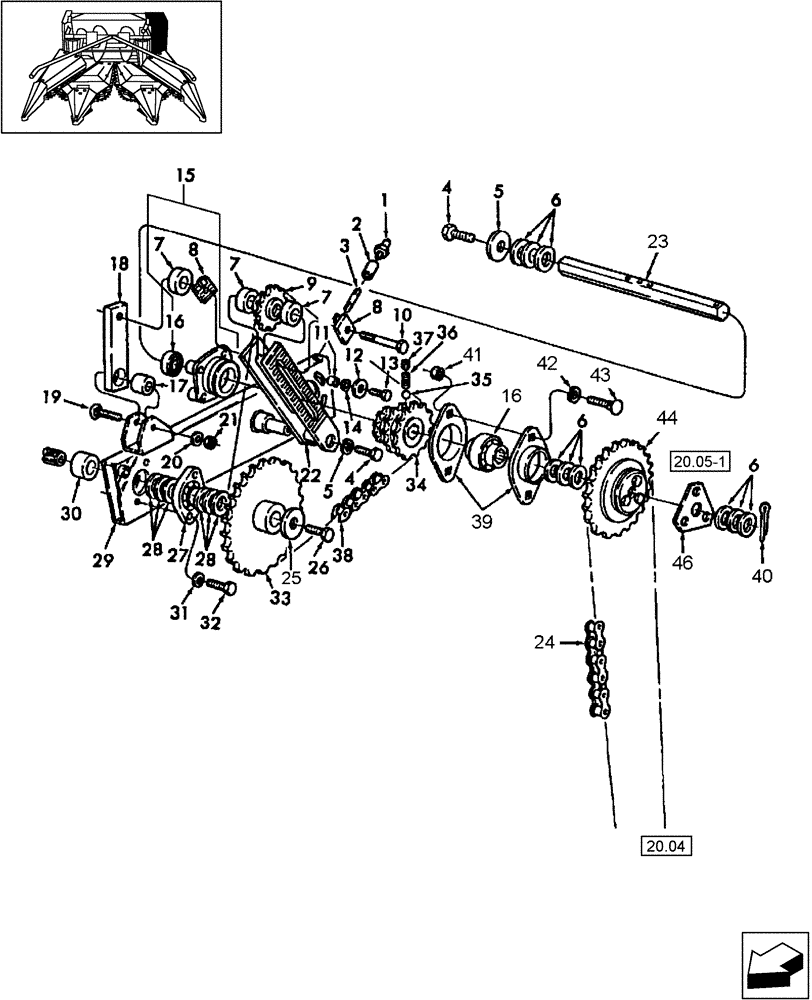

Запчасти Case IH HDX3R (20.03) - DRIVE, AUGER (58) - ATTACHMENTS/HEADERS

1

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

1шт.

2

91932

COUPLING,1/8" - 27 NPT x 1/8" - 27 NPT

1/8" NPT

1шт.

3

124160

PIPE,1/8" NPT x 1/8" NPT

1шт.

4

614-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 8.8, Full Thd

2шт.

5

25939

WASHER,13.5mm ID x 44.5mm OD x 5mm Thk

Special

2шт.

6

164999

WASHER

1шт.

7

86634530

HUB

3шт.

8

86633837

PLATE

2шт.

9

86627639

SPROCKET,15T

1шт.

10

814-16120

BOLT,Hex, M16 x 2 x 120mm, Cl 8.8

1шт.

11

380580

BUSHING

4шт.

12

623303

WASHER,10.32mm ID x 47.63mm OD x 4.76mm Thk

4шт.

13

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

4шт.

14

262279

WASHER,10.32mm ID x 18.26mm OD x 0.61mm Thk

1шт.

15

9804578

BEARING ASSY,68.3 mm ID x 108 mm OD

1шт.

16

121602

BALL BEARING,28.6mm Hex x 72mm OD x 37.7mm W

3шт.

17

9609878

SPACER

1шт.

18

86633842

SUPPORT

1шт.

19

811-12060

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 60mm, Cl 8.8

1шт.

20

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

1шт.

21

829-1412

NUT,M12, Cl 10.9

1шт.

22

86633828

ARM

1шт.

23

86633851

SHAFT

Hex

1шт.

24

164936

CHAIN

RC60, 3/4"-pitch, 62 Pitches, Includes (1) 25812 Connecting Link

1шт.

25

574245

WASHER,16.76mm ID x 50.8mm OD x 6.35mm Thk

1шт.

26

614-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 8.8, Full Thd

1шт.

27

86512492

BEARING ASSY,38.1mm ID

Bearing

1шт.

28

25494

WASHER,38.9mm ID x 50.8mm OD x 1.5mm Thk

6шт.

29

86633838

ARM

LH

1шт.

30

86633814

HUB

1шт.

31

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

2шт.

32

814-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

2шт.

33

86631935

DRIVING SPROCKET

44T

1шт.

33

86631934

SPROCKET

35T, Optional

1шт.

34

86631933

HUB,13T / 16T / 19T

1шт.

35

86628554

BALL,6.53mm OD, Gr 25

1шт.

36

86632730

SPRING

Compression

1шт.

37

529216

SET SCREW

HS, Self-Locking, Cup Pt, 5/16"-18 x 1/4"

1шт.

38

169670

CHAIN

RC60, 3/4" Pitch, 72 Pitches, Auger Drive, Includes: (1) 25812 Connecting Link

1шт.

39

599382R1

FLANGED BEARING

2шт.

40

432-1232

COTTER PIN,3/16" OD x 2" L

1шт.

41

825-1410

NUT,M10, Cl 8

2шт.

42

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

43

811-10020

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 20mm, Cl 8.8

2шт.

44

86624591

CLUTCH

Slip Auger

1шт.

46

86627515

BRACKET

1шт.
