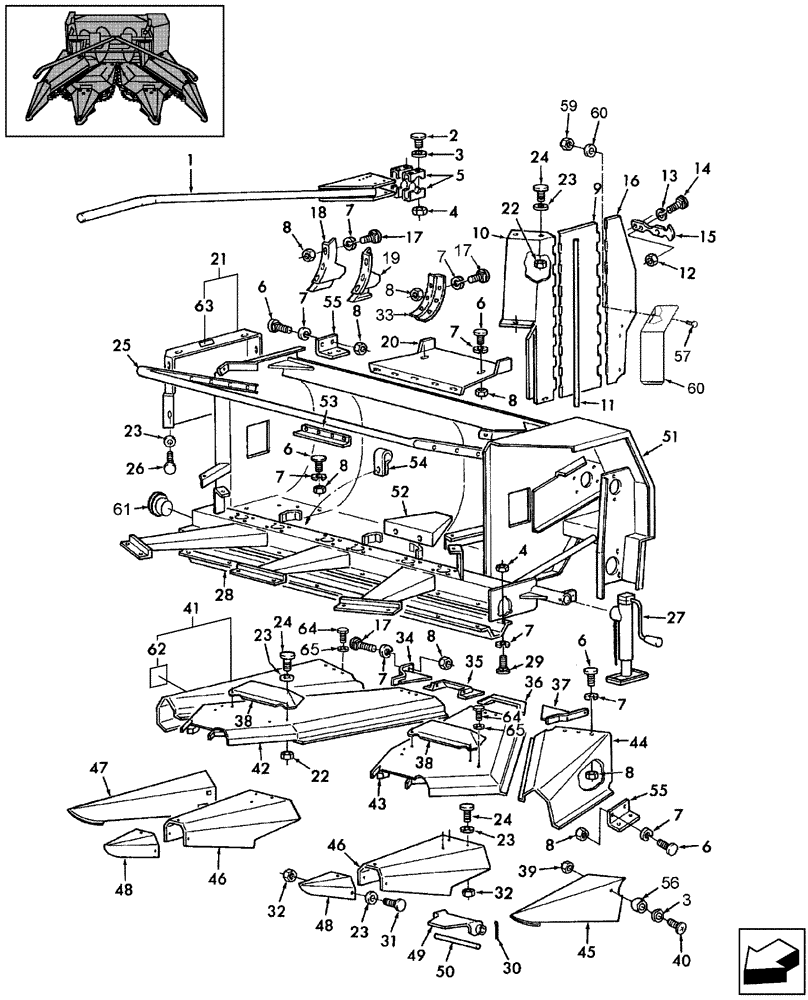

Запчасти Case IH HDX3R (20.01) - MAIN FRAME AND DIVIDER POINTS (58) - ATTACHMENTS/HEADERS

1

86621656

TUBE

2шт.

2

814-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

8шт.

3

285072

WASHER,10.3mm ID x 22.2mm OD x 2.7mm Thk

(3/8")

20шт.

4

832-46410

NUT,M10 x 1.5, Cl 8

8шт.

5

86621660

CLAMP

8шт.

6

811-10020

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 20mm, Cl 8.8

25шт.

7

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

34шт.

8

825-1410

NUT,M10, Cl 8

34шт.

9

86621535

SHIELD

LH

1шт.

10

86729042

SHIELD

1шт.

11

9617448

PIN,6.35mm OD x 1493.52mm L

2шт.

12

832-46406

NUT,M6 x 1, Cl 8

6шт.

13

495-21038

WASHER,5/16"

6шт.

14

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

6шт.

15

86000448

LATCH

3шт.

16

86621577

SHIELD

1шт.

17

811-10030

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 30mm, Cl 8.8

1шт.

18

86624517

GUIDE

Crop, RH

1шт.

19

86624519

GUIDE

Crop, LH

1шт.

20

86619956

PLATE

Floor, FHX300

1шт.

21

86631726

SHIELD

RH, Includes: Ref.63

1шт.

22

825-1408

NUT,M8, Cl 8

40шт.

23

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

46шт.

24

811-8020

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8

40шт.

25

86621658

LEVER

1шт.

26

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

6шт.

27

86729155

JACK

Outer Tube, 2 1/4, Black, 3,000 lb.

2шт.

Refer to Figure 20.02 for Components.

1шт.

28

86624505

COVER

1шт.

29

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

11шт.

30

432-1232

COTTER PIN,3/16" OD x 2" L

2шт.

31

434-510

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 5/8", Gr 5

12шт.

32

425-105

NUT,5/16"-18, G5

6шт.

33

9802833

SUPPORT

Filler, LH

1шт.

34

86624509

STRIPPER ASSY.

RH

1шт.

35

86624511

STRIPPER

RH

1шт.

36

86624513

STRIPPER

LH

1шт.

37

86624515

STRIPPER ASSY.

LH

1шт.

38

86620300

COVER

2шт.

39

425-106

NUT,3/8"-16, Cl 5

8шт.

40

84772

SCREW,Slotted Truss Hd, 3/8" - 16 x 1 1/2"

4шт.

41

86631724

SHIELD

RH, Includes: Ref. 62

1шт.

42

86621573

COVER ASSY

RH

1шт.

43

86621571

COVER ASSY

LH

1шт.

44

86705944

SHIELD

LH, Includes: Ref. 62

1шт.

45

86621581

GATHERER

Divider Outside LH

1шт.

46

86729044

POINT

2шт.

47

86621579

GATHERER

Divider Outside RH

1шт.

48

86620302

TIP

row

2шт.

49

86729043

PIVOT ASSY.

LH

2шт.

50

9612793

ROD

2шт.

51

86705946

FRAME ASSY

Main, Includes: Ref. 64 & 65

1шт.

53

86624580

STRIPPER

4шт.

54

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

1шт.

55

86620303

ANGLE

2шт.

55

86624578

ANGLE

2шт.

56

86528890

SPACER

4шт.

57

811-6016

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 16mm, Cl 8.8

4шт.

58

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

59

825-1406

NUT,M6, Cl 8

4шт.

60

86621575

SHIELD

1шт.

61

556794

PLUG

1шт.

62

9806449

DANGER DECAL

English

1шт.

62

9827729

WARNING SIGN

French

1шт.

63

86642407

WARNING SIGN

1шт.

64

43151

BOLT,Hex, M12 x 20mm, Cl 8.8, Full Thd

20шт.

65

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

28шт.
