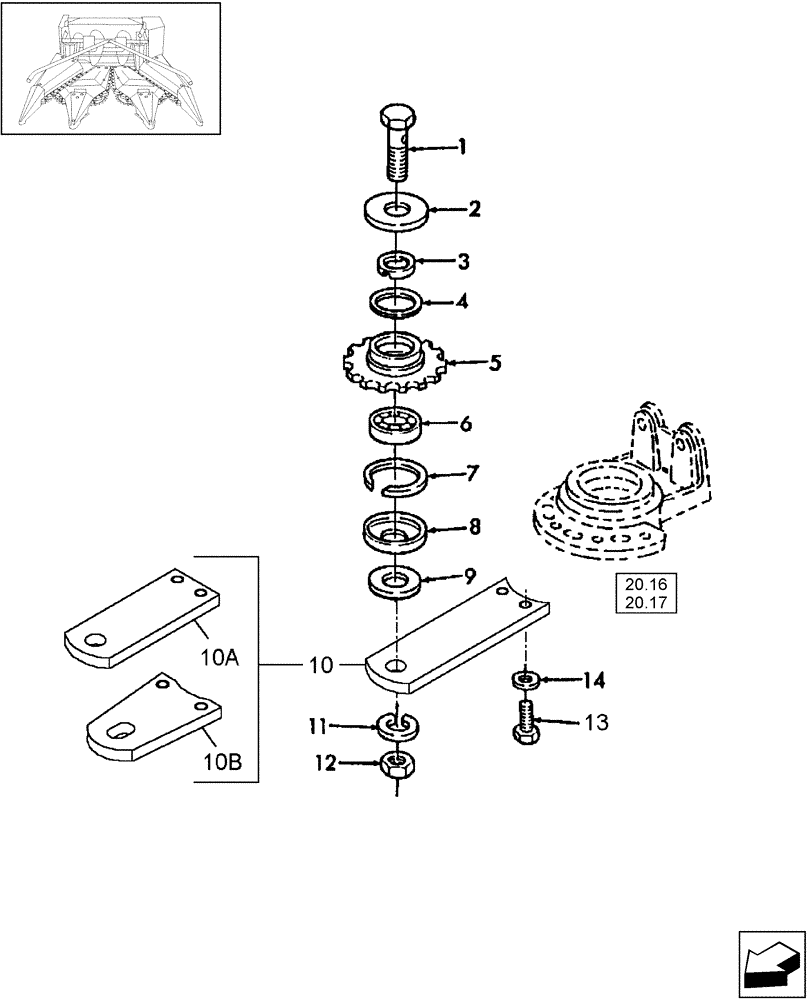

Запчасти Case IH HDX3R (20.18) - CHAIN, EXTENSION (58) - ATTACHMENTS/HEADERS

1

413-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 5

1шт.

2

86633822

BEARING ASSY

Bearing

1шт.

3

86633823

SLEEVE

1шт.

4

288875

OIL SEAL,28.57mm ID x 41.4mm OD x 6.35mm Thk

1шт.

5

86631930

DRIVEN SPROCKET

14T, Center & Inside All Row Units

1шт.

5

86631931

SPROCKET

13T, Outside Outer Row Units

1шт.

6

T39594

BALL BEARING,0.7505" ID x 1.7805" OD x 0.61"

1шт.

7

100-21175

SNAP RING,1.75", Int, #175

1шт.

8

9827884

BEARING ASSY,19.5 mm ID x 44.666 mm OD x 7.5 mm

Bearing

1шт.

9

86632732

WASHER

.075" Thk.

1шт.

10

86633855

ARM

215mm Long, Center Row Units

1шт.

10a

86633858

ARM

170mm Long, Inside Outer Row Units

1шт.

10b

86633819

ARM

Outside Outter Row Units

1шт.

11

86635013

WASHER

1шт.

12

425-1012

NUT,3/4"-10, G5

1шт.

13

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

2шт.

14

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

2шт.
