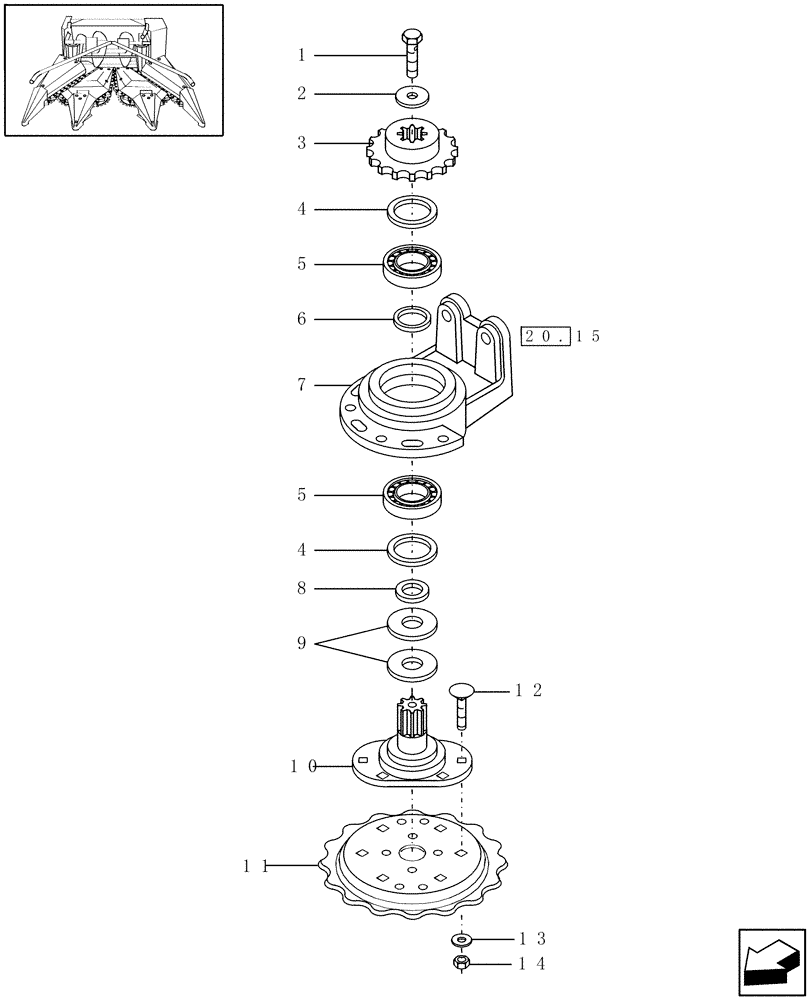

Запчасти Case IH HDX3R (20.17) - CUTTING DISC, RH (58) - ATTACHMENTS/HEADERS

1

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

1шт.

2

692300

WASHER,13.5mm ID x 50.8mm OD x 7.37mm Thk

2" OD x 3/16" Thk

1шт.

3

86621657

SPROCKET

17T

1шт.

4

9825158

SEALING RING

2шт.

5

350420

BALL BEARING,35mm ID x 80mm OD x 21mm W

2шт.

6

47704

WASHER,35.7mm ID x 50.8mm OD x 5mm Thk

1шт.

7

86633833

HOUSING

1шт.

8

444099

WASHER,36mm ID x 49mm OD x 2.99mm Thk

1шт.

9

86636371

WASHER

2шт.

10

9822697

SHAFT

1шт.

11

9843538

DISC

Cutter

1шт.

12

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

6шт.

13

492-11038

LOCK WASHER,3/8"

6шт.

14

425-106

NUT,3/8"-16, Cl 5

6шт.
