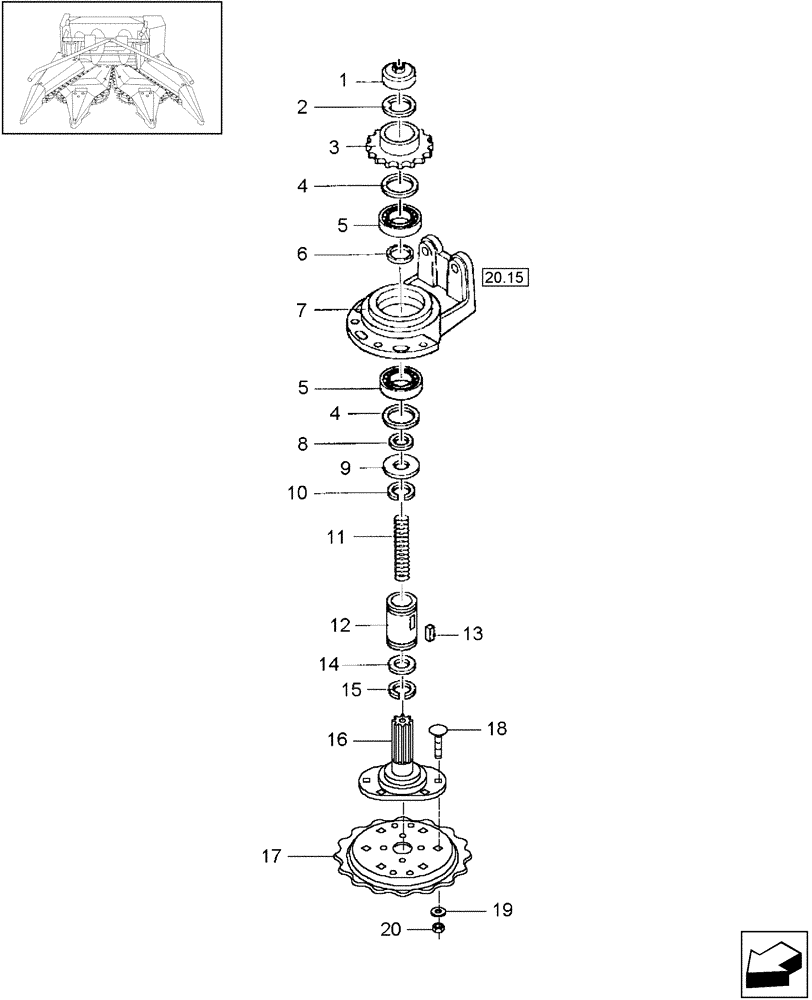

Запчасти Case IH HDX3R (20.16) - CUTTING DISC, LH (58) - ATTACHMENTS/HEADERS

1

86500943

COVER

1шт.

2

9822651

WASHER

1шт.

3

86631929

DRIVING SPROCKET

17T

1шт.

4

9825157

SEALING RING

4шт.

5

9800740

BALL BEARING,50mm ID x 80mm OD x 16mm W

2шт.

6

9615266

SPACER

1шт.

7

86633833

HOUSING

1шт.

8

86636369

WASHER,50mm ID x 78.99mm OD x 3mm Thk

1шт.

9

330760

WASHER,50.5mm ID x 60mm OD x 3.5mm Thk

1шт.

10

800-1150

SNAP RING,M50, Ext

1шт.

11

9828106

SPRING

1шт.

12

9615260

HUB

1шт.

13

87477

KEY

1/4" Sq x 1"

1шт.

14

46886

OIL SEAL,34.92mm ID x 44.76mm OD x 5.13mm Thk

1шт.

15

46810

SNAP RING,Ext, 1.288"

1шт.

16

9822696

SHAFT

1шт.

17

9843538

DISC

Cutter

1шт.

18

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

6шт.

19

492-11038

LOCK WASHER,3/8"

6шт.

20

425-106

NUT,3/8"-16, Cl 5

6шт.
