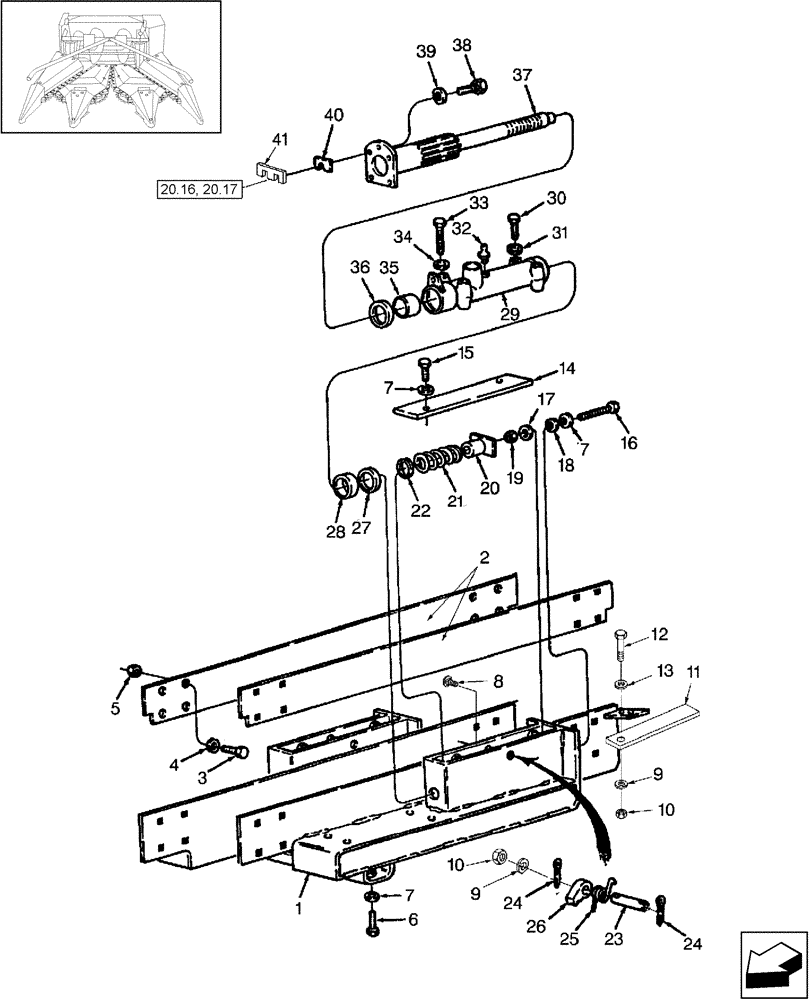

Запчасти Case IH HDX3R (20.15) - ROW UNIT AND STALKWAY (58) - ATTACHMENTS/HEADERS

1

86633835

ROW UNIT

Center

1шт.

1

86633848

ROW UNIT

Outside LH

1шт.

1

86633844

ROW UNIT

Outside RH

1шт.

2

86633845

WEAR STRIP

Row units, 9809311

2шт.

2

86633820

WEAR STRIP

Row units 9617144 & 9617145

2шт.

3

280762

PLOW BOLT,#3, 5/16" - 18 x 1", Gr 5, Full Thd

1шт.

4

492-11031

LOCK WASHER,5/16"

1шт.

5

9635082

NUT,5/16" - 18, Gr 5

1шт.

6

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

1шт.

7

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

1шт.

8

280856

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 5", Gr 5

1шт.

9

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

1шт.

10

425-108

NUT,1/2" - 13, Gr 5

1шт.

11

86636370

PLATE

Stripper

1шт.

11

86633825

STRIPPER

Long

1шт.

12

814-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

1шт.

13

495-11034

WASHER,5/16", SAE

1шт.

14

86633843

COVER

2шт.

15

614-12016

BOLT,Hex, M12 x 1.75 x 16mm, Cl 8.8, Full Thd

4шт.

16

614-12130

BOLT,Hex, M12 x 1.75 x 130mm, Cl 8.8, Full Thd

2шт.

17

86632729

WASHER

Collar

4шт.

18

143479

WASHER,15.08" ID x 31.75" OD x 3.5" Thk

1шт.

19

829-1412

NUT,M12, Cl 10.9

2шт.

20

9821676

NUT

2шт.

21

86633818

SPRING

2шт.

22

800-1130

SNAP RING,M30, Ext

2шт.

23

9615293

PIN,14.3mm OD x 73mm L

2шт.

24

130007

COTTER PIN,M4 x 25

4шт.

25

86633840

SPRING

Torsion

2шт.

26

86633847

SUPPORT

2шт.

27

378273

SEALING RING

2шт.

28

87790425

BUSHING

2шт.

29

86633824

HOUSING

2шт.

30

814-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 8.8

3шт.

30

814-12180

BOLT,Hex, M12 x 1.75 x 180mm, Cl 8.8

Outside of Outside Row Units Only

1шт.

31

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

4шт.

32

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

33

814-16150

BOLT,Hex, M16 x 2 x 150mm, Cl 8.8

3шт.

33

9817985

BOLT,Hex, M16 x 2 x 230mm, Cl 10.9

Outside of Outside Row Units Only

1шт.

34

781316

WASHER,16.66mm ID x 28.45mm OD x 3.43mm Thk

4шт.

35

223316

BUSHING,38.1mm ID x 41.3mm OD x 38.1mm L

2шт.

36

272545

SEAL

2шт.

37

9826093

SHAFT

Idler

2шт.

38

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

8шт.

39

285072

WASHER,10.3mm ID x 22.2mm OD x 2.7mm Thk

(3/8")

8шт.

40

615179

SHIM,.005" Thk

1шт.

41

9604237

SHIM,1.5mm Thk

Center Row Unit Only

1шт.
