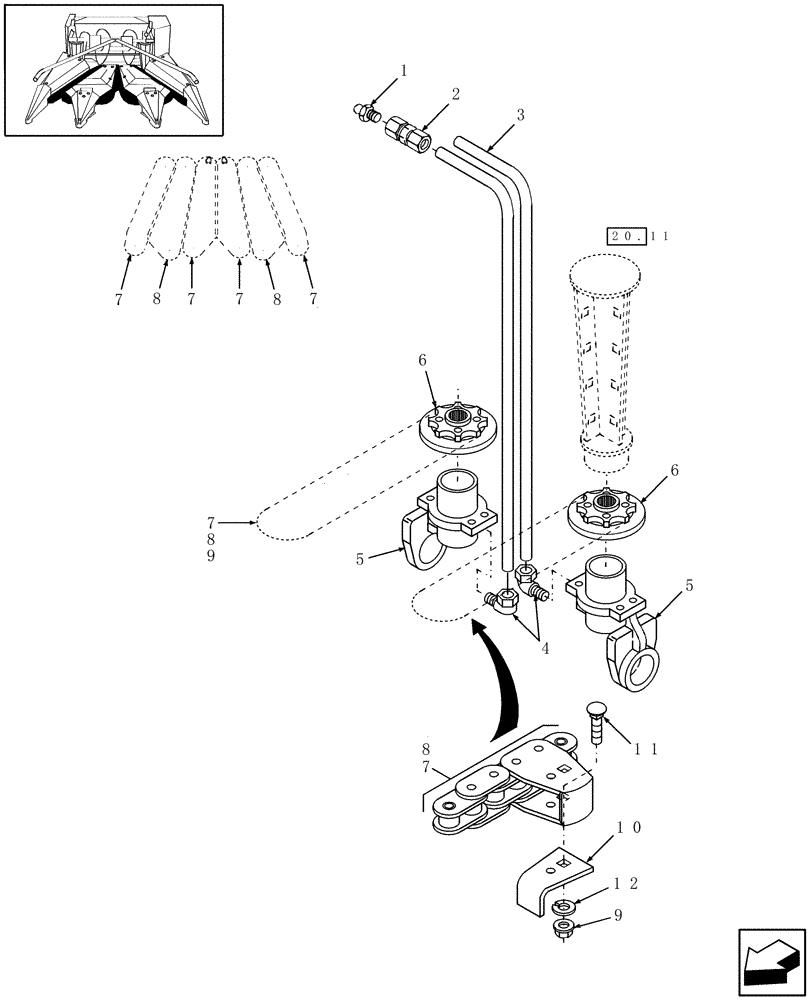

Запчасти Case IH HDX3R (20.14) - GATHERING CHAIN, LUBRICATION LINE (58) - ATTACHMENTS/HEADERS

1

219-60

LUBE NIPPLE,1/8" - 27 Female NPTF

1шт.

2

11787

FITTING,3/8"-24 Fem x 1/8" NPT

Includes: 13362 Sleeve & 13367 Nut

1шт.

3

9809069

TUBE

Lube

1шт.

Service Lube Lines with 9809069 (1453mm long) cut to length

1шт.

4

48564

90 ELBOW,90 Degree, 11/16" x 5/8", 1/8" NPT

Male, Includes: 13362 Sleeve & 13367 Nut

1шт.

5

86542662

BEARING HOUSING

Support, Includes: 121602 Bearing

1шт.

6

86631932

SPROCKET

14T, under power dividers only

2шт.

6

86631939

SPROCKET

14T

1шт.

7

86593262

GATHERING CHAIN,2336.8mm L

KCM80FSO, Riveted, 1"-pitch, 92 Pitches

1шт.

8

86593264

GATHERING CHAIN,2438.4mm L

KCM80FSO, Riveted, 1"-pitch, 96 Pitches

1шт.

9

832-46408

NUT,M8 x 1.25, Cl 8

1шт.

10

86633815

ANGLE

1шт.

11

811-8020

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8

1шт.

12

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.
