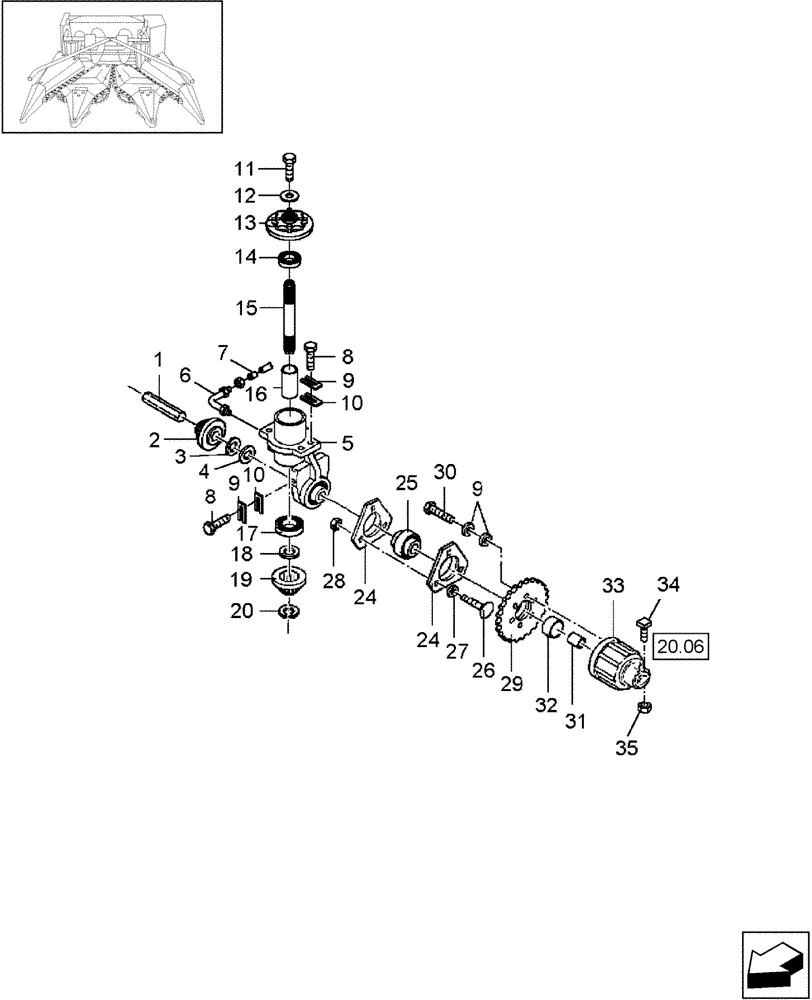

Запчасти Case IH HDX3R (20.13) - GATHERING CHAIN, DRIVE (58) - ATTACHMENTS/HEADERS

1

9847988

SHAFT

Hex, LH

1шт.

2

719563

BEVEL GEAR

15T

6шт.

3

214539

WASHER,34.9mm ID x 50.8mm OD x 0.51mm Thk

1шт.

4

130357

WASHER,35.3mm ID x 60.3mm OD x 1.52 Thk

1-3/8"

1шт.

5

86542662

BEARING HOUSING

Includes: 121602 Bearing

8шт.

6

48564

90 ELBOW,90 Degree, 11/16" x 5/8", 1/8" NPT

Male, Includes: 13362 Sleeve & 13367 Nut

1шт.

7

9809069

TUBE

Lube

1шт.

Service Lube Lines with 9809069 (1453mm long) cut to length

1шт.

8

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

1шт.

9

285072

WASHER,10.3mm ID x 22.2mm OD x 2.7mm Thk

(3/8")

1шт.

10

237529

SHIM,.015" Thk

1шт.

10

9840753

SHIM,2.66mm Thk

1шт.

11

412674

BOLT,Hex, M12 x 1.25 x 50mm, Cl 8.8

HH, CL 8.8, M12 x 1.75 x 50

1шт.

12

86622619

WASHER,0.53" ID x 1.62" OD x 0.25" Thk

Under Power Dividers Only

2шт.

12

692300

WASHER,13.5mm ID x 50.8mm OD x 7.37mm Thk

2" OD x 3/16" Thk

1шт.

13

86631932

SPROCKET

14T, Under Power Dividers Only

2шт.

13

86631939

SPROCKET

14T

4шт.

14

412693

BALL BEARING,35mm ID x 72mm OD x 17mm W

1шт.

15

856366

SHAFT

1шт.

16

86633854

SPACER

1шт.

17

84438926

BALL BEARING,35mm ID x 72mm OD x 17mm W

1шт.

18

86632731

WASHER

1шт.

19

9622548

BEVEL GEAR

15T

6шт.

20

272730

SNAP RING

.094"

1шт.

24

86620026

FLANGED BEARING

2шт.

25

121602

BALL BEARING,28.6mm Hex x 72mm OD x 37.7mm W

Hex-Bore

1шт.

26

811-10020

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 20mm, Cl 8.8

1шт.

27

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

28

825-1410

NUT,M10, Cl 8

1шт.

29

86631940

SPROCKET

9T

1шт.

29

86621655

SPROCKET

17T, Optional

1шт.

30

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

12шт.

31

255080

BUSHING

1шт.

32

612273

COLLAR

1шт.

33

86633853

CLUTCH

Radial Pin

1шт.

34

80446

SET SCREW,Sq Hd, 3/8" - 16 x 1"

2шт.

35

425-106

NUT,3/8"-16, Cl 5

1шт.
