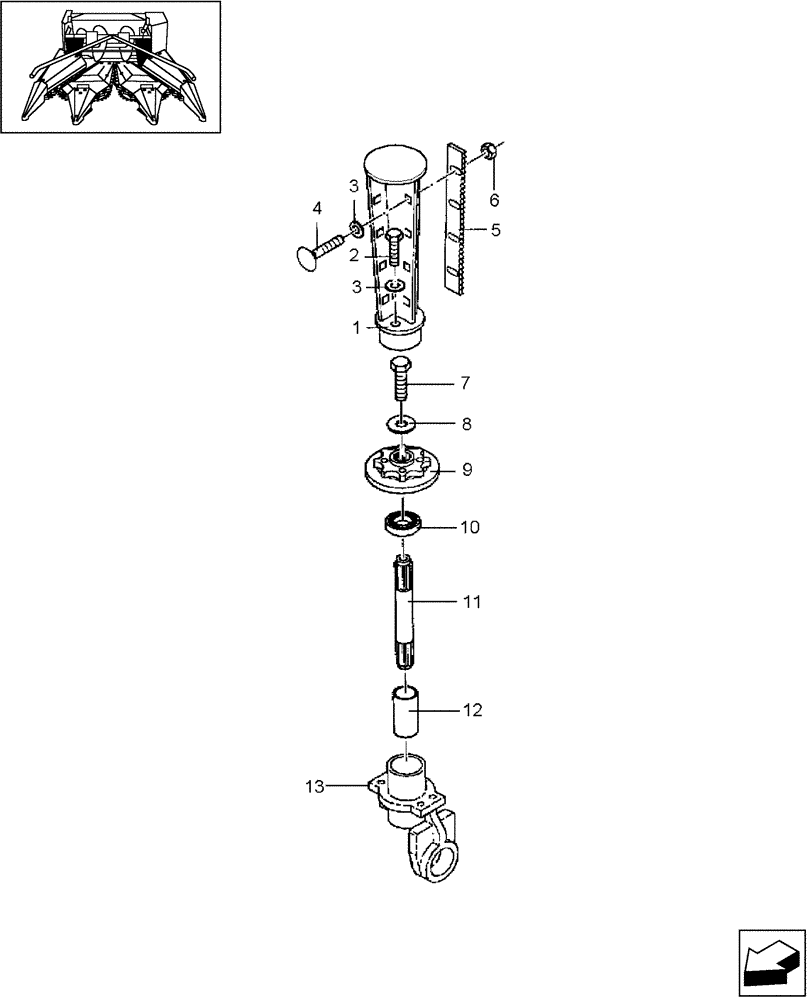

Запчасти Case IH HDX3R (20.11) - POWER, DIVIDER (58) - ATTACHMENTS/HEADERS

1

86624589

DIVIDER ASSY.

Power

2шт.

2

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

8шт.

3

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

16шт.

4

811-8020

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8

16шт.

5

86624587

PLATE

8шт.

6

825-1408

NUT,M8, Cl 8

32шт.

7

412674

BOLT,Hex, M12 x 1.25 x 50mm, Cl 8.8

HH, CL 8.8, M12 x 1.75 x 50

1шт.

8

86622619

WASHER,0.53" ID x 1.62" OD x 0.25" Thk

1шт.

9

86631932

SPROCKET

14T

1шт.

10

412693

BALL BEARING,35mm ID x 72mm OD x 17mm W

2шт.

11

856366

SHAFT

2шт.

12

86633854

SPACER

2шт.

13

86542662

BEARING HOUSING

Support, Includes: 121602 Bearing

2шт.

Refer to Fig. 20.12 for Components

1шт.
