(20.10) - ROW UNIT, FRAME

Запчасти Case IH HDX3R (20.10) - ROW UNIT, FRAME (58) - ATTACHMENTS/HEADERS

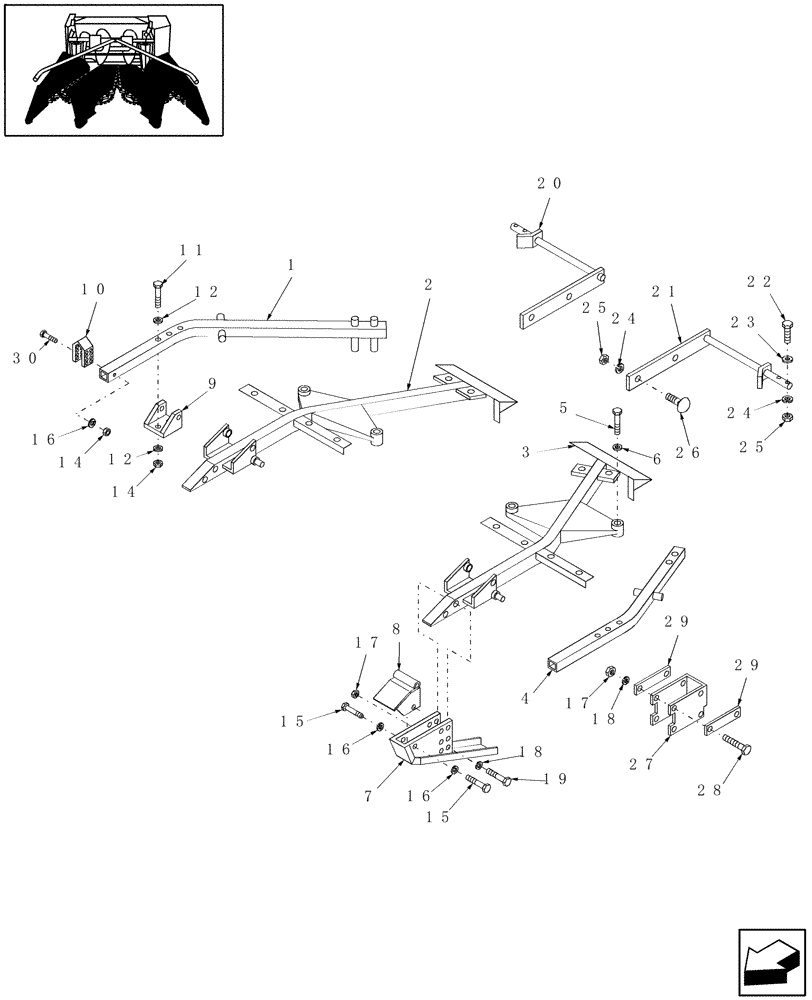

Схема запчастей Case IH HDX3R - (20.10) - ROW UNIT, FRAME (58) - ATTACHMENTS/HEADERS
29
23
9
27
22
18
20
24
18
10
5
21
17
12
14
7
3
14
16
8
17
24
25
4
28
15
29
2
15
16
19
1
6
26
30
16
11
12
25
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

86633832

TUBE

RH

1шт.

2

86633859

SUPPORT

RH

1шт.

3

86633821

SUPPORT

LH

1шт.

4

86633829

TUBE

LH

1шт.

5

814-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 8.8

4шт.

6

64053

WASHER,16.9mm ID x 38.55mm OD x 4mm Thk

Special, Hardened

4шт.

7

9604740

SKID PLATE

2шт.

8

86729041

STOP

2шт.

9

86633846

CHANNEL

2шт.

10

86636374

STOP

2шт.

11

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

4шт.

12

285072

WASHER,10.3mm ID x 22.2mm OD x 2.7mm Thk

(3/8")

8шт.

13

86610677

SPACER,10.3mm ID X 19.05mm OD X 14.3mm L

4шт.

14

825-1410

NUT,M10, Cl 8

1шт.

15

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

6шт.

16

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

17

829-1412

NUT,M12, Cl 10.9

2шт.

18

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

19

814-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 8.8

2шт.

20

86633834

MOUNTING ROD

RH Row Unit

1шт.

21

86633836

MOUNTING ROD

LH Row Unit

1шт.

22

43129

BOLT,Hex, M8 x 1.25 x 40mm, LH Thd, Cl 8.8

2шт.

23

495-11034

WASHER,5/16", SAE

2шт.

24

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

8шт.

25

825-1408

NUT,M8, Cl 8

8шт.

26

811-8020

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8

4шт.

27

86621715

EXTENSION

Shoe

1шт.

Part of Shoe Extension Kit. Also included are (18) 140046 M12 Lockwashers, (12) 120120 M12 x 30 Hex Head Cap Screws & (18) 9706685 Nuts. Complete Kit is available through wholegoods.

1шт.

28

814-12100

BOLT,Hex, M12 x 1.75 x 100mm, Cl 8.8

1шт.

Part of Shoe Extension Kit. Also included are (18) 140046 M12 Lockwashers, (12) 120120 M12 x 30 Hex Head Cap Screws & (18) 9706685 Nuts. Complete Kit is available through wholegoods.

1шт.

29

86621713

STRIP

1шт.

Part of Shoe Extension Kit. Also included are (18) 140046 M12 Lockwashers, (12) 120120 M12 x 30 Hex Head Cap Screws & (18) 9706685 Nuts. Complete Kit is available through wholegoods.

1шт.

30

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

1шт.
