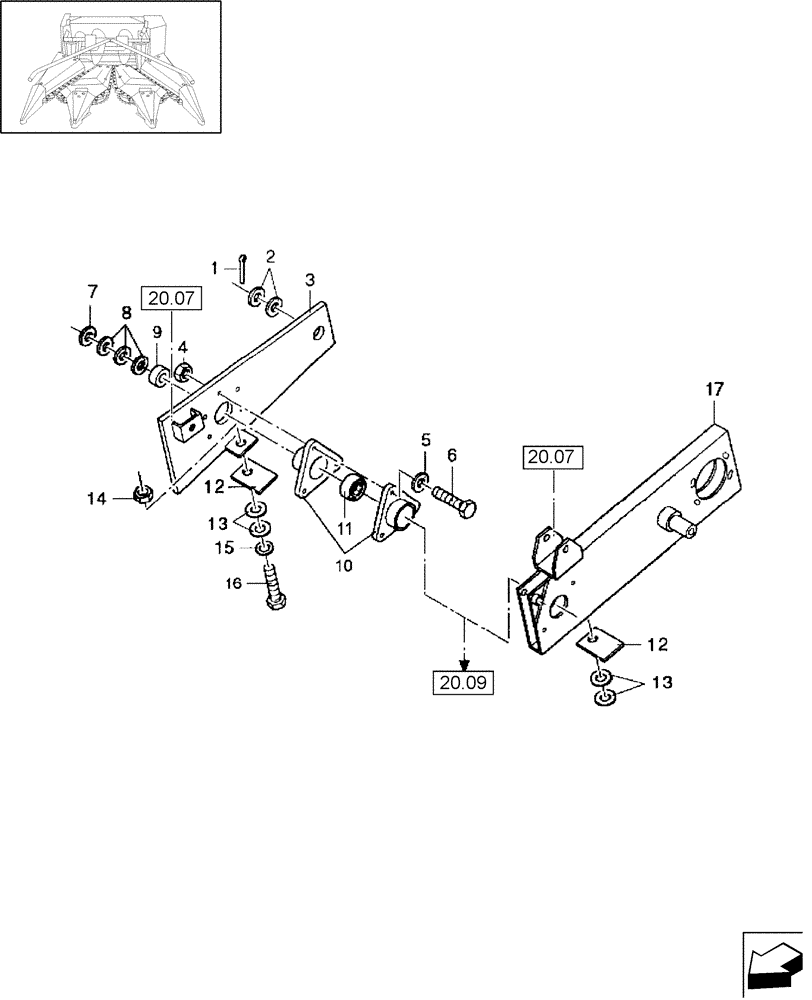

Запчасти Case IH HDX3R (20.08) - AUGER, ARM (58) - ATTACHMENTS/HEADERS

1

733-6340

COTTER PIN,M6.3 x 40

2шт.

2

50613

WASHER

.075" Thick

2шт.

3

86624582

ARM ASSY.

RH

1шт.

4

825-1410

NUT,M10, Cl 8

1шт.

5

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

6

811-10030

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 30mm, Cl 8.8

3шт.

7

100-16125

SNAP RING,#125, Ext

1шт.

8

146258

WASHER,1 9/32" x 1 3/4" x 16 Ga.

1шт.

9

557995R11

COLLAR

Locking, Includes: Set Screw

1шт.

10

662649R1

RETAINER

Bearing

2шт.

11

617667R92

BALL BEARING,31.75mm ID x 62mm OD x 18mm W

1шт.

12

268027

PAD

2шт.

13

86633849

SPACER

Tab

4шт.

14

832-46410

NUT,M10 x 1.5, Cl 8

1шт.

15

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

2шт.

17

86633838

ARM

LH

1шт.

16

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.
