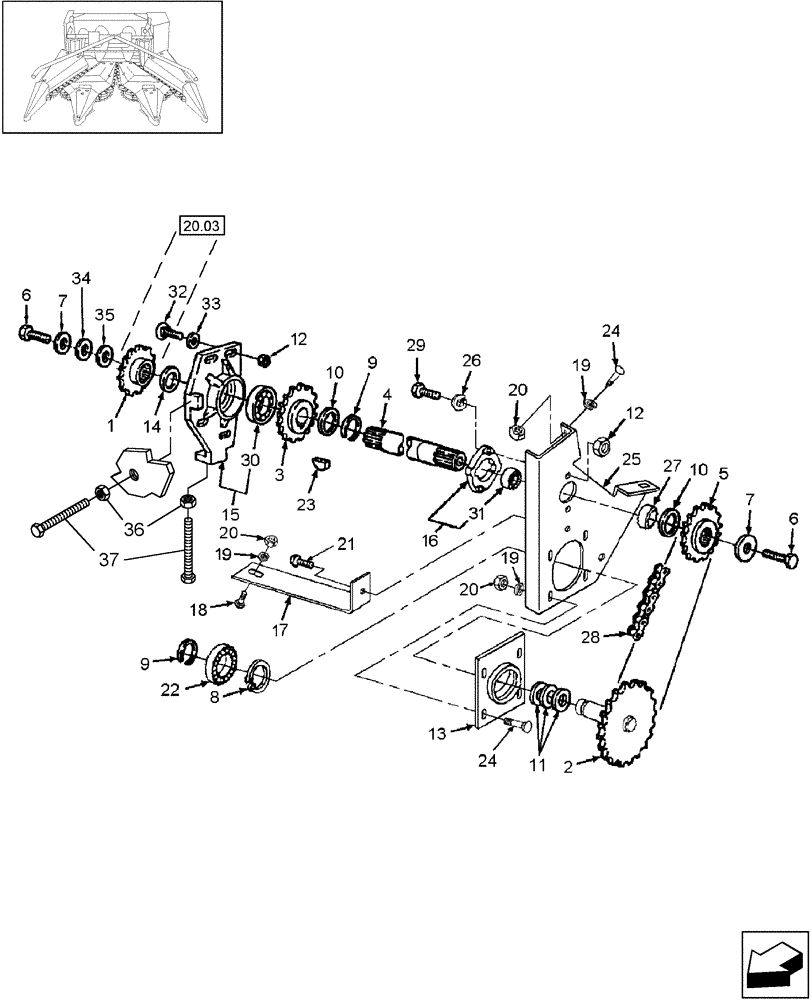

Запчасти Case IH HDX3R (20.04) - DRIVE, ROW UNIT (58) - ATTACHMENTS/HEADERS

1

86631938

SPROCKET

16T

1шт.

2

86633812

SHAFT

1шт.

3

86631937

SPROCKET

13T

1шт.

4

86633816

SHAFT

1шт.

5

86631936

SPROCKET

23T

1шт.

6

86629498

BOLT

Special

2шт.

7

574245

WASHER,16.76mm ID x 50.8mm OD x 6.35mm Thk

1шт.

8

46809

SNAP RING

Retaining, Int, M71.83 x 1.588 Thick

1шт.

9

46810

SNAP RING,Ext, 1.288"

2шт.

10

130357

WASHER,35.3mm ID x 60.3mm OD x 1.52 Thk

1-3/8"

8шт.

11

164999

WASHER

4шт.

12

829-1412

NUT,M12, Cl 10.9

10шт.

13

86627514

HUB

1шт.

14

794506

WASHER

2шт.

15

86517961

BEARING ASSY

1шт.

16

9612898

BEARING ASSY,2.281" ID x 2.4409" OD x 0.88"

1шт.

17

86633813

BRACKET

1шт.

18

811-10020

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 20mm, Cl 8.8

1шт.

19

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

8шт.

20

825-1410

NUT,M10, Cl 8

8шт.

21

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

1шт.

22

84438926

BALL BEARING,35mm ID x 72mm OD x 17mm W

2шт.

23

126-32

WOODRUFF KEY,#21, 1/4" x 1 1/4"

1шт.

24

811-10030

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 30mm, Cl 8.8

6шт.

25

86633811

BRACKET

1шт.

26

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

27

644974

SPACER

1шт.

28

135781

CHAIN

RC 60, 3/4P, 51 Regular + 1 connecting Link

1шт.

28

165590

CONNECTING LINK

Spring Clip Type

1шт.

29

814-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

2шт.

30

571588R92

BALL BEARING,1.3755" ID x 72 mm OD x 1"

1шт.

31

617667R92

BALL BEARING,31.75mm ID x 62mm OD x 18mm W

1шт.

32

811-12030

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 30mm, Cl 8.8

4шт.

33

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

4шт.

34

26382

WASHER

0.66" ID x 1.09" OD x 0.06" Thk

3шт.

35

773427

WASHER,0.65" ID x 1.09" OD x 0.02" Thk

41/64" ID x 1-3/32" OD x 0.020" Thk

4шт.

36

9706685

NUT,M12 x 1.75, Cl 8

2шт.

37

412498

BOLT,Hex, M12 x 1.75 x 65mm, Cl 8.8, Full Thd

Bearing Bracket Adjustment

2шт.
