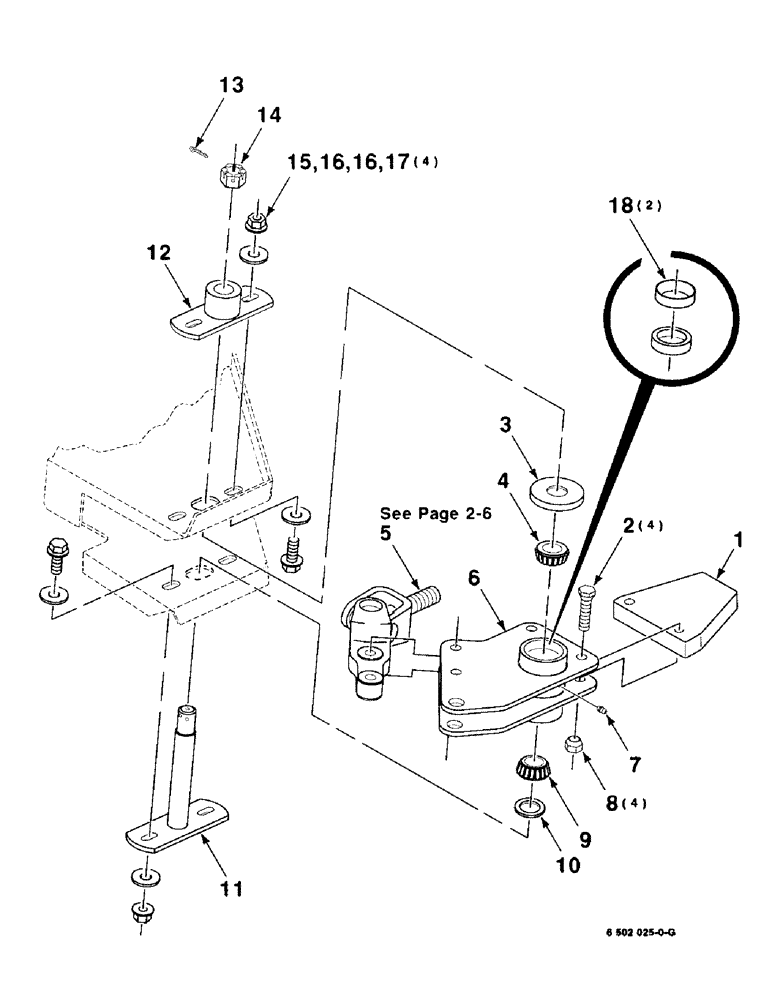

Запчасти Case IH 8750 (2-04) - BELLCRANK ASSEMBLY (58) - ATTACHMENTS/HEADERS

1

6182174

WEIGHT

COUNTER-WEIGHT

1шт.

2

51200269

BOLT

- wheel

4шт.

3

6205751

SHIELD

1шт.

4

E13994

BEARING,25.4mm ID

- cone

1шт.

5

7750730

JOINT

U-JOINT - Pitman

1шт.

6

6501696

ARM ASSY.

BELLCRANK ASSEMBLY

1шт.

7

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

1шт.

8

26294

NUT

- wheel

4шт.

9

51805

ROLLER BEARING,25.4mm ID

BEARING - cone with seal

1шт.

10

6205793

SHIM

1шт.

11

123216

PIN

WA

1шт.

12

6106561

PLATE

WA

1шт.

13

432-1024

COTTER PIN,5/32" x 1 1/2"

5/32" x 1 1/2"

1шт.

14

425-1314

SLOTTED NUT,7/8"-14, G5

7/8-14 SLOTTED HEX NUT

1шт.

15

700710984

SCREW,Hex Flg, 1/2" x 1 1/4", G8 NC

1/2-13 X 1-1/4 HFS GR8

4шт.

16

700711557

WASHER

1/2 HARDENED WIDE PLAIN WASHER

8шт.

17

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

4шт.

18

50104

BEARING CUP,50.01mm OD

BEARING - cup

2шт.
