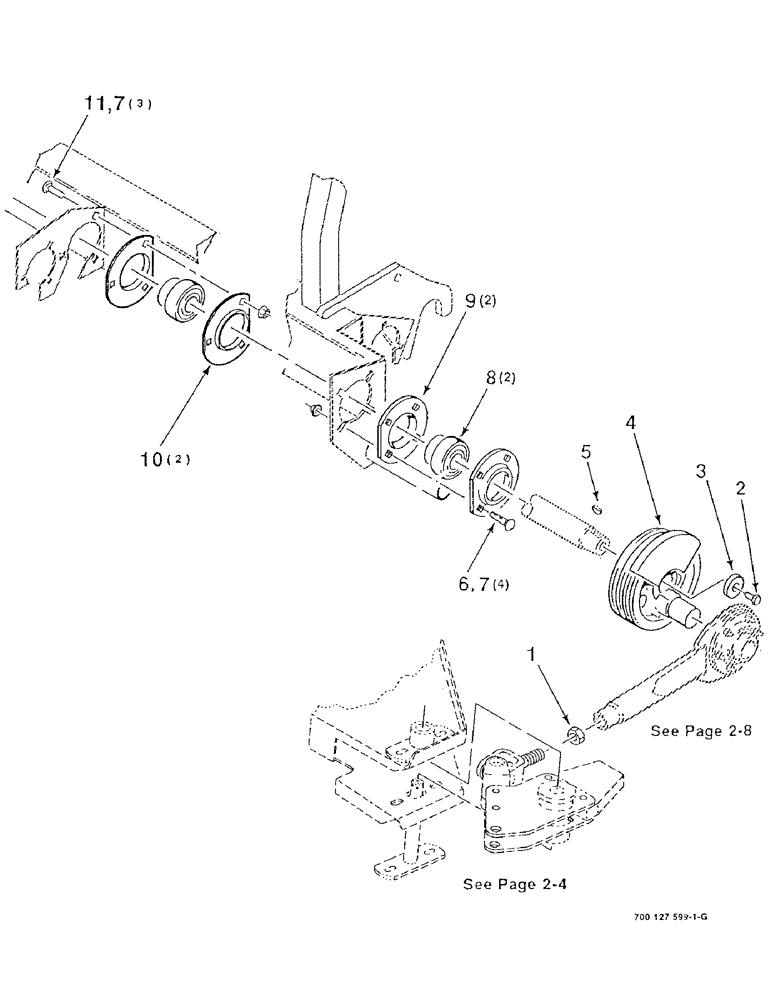

Запчасти Case IH 8750 (2-02) - HEADER DRIVE ASSEMBLY, LEFT (58) - ATTACHMENTS/HEADERS

1

7774417

LOCK NUT

7/8-18 HJN

1шт.

2

414-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

1/2-20 X 1 C

1шт.

3

6246367

WASHER

SPECIAL WASHER

1шт.

4

6262919

SHEAVE

PITMAN FLYWHEEL

1шт.

5

61598

WOODRUFF KEY,#B, 5/16" x 1"

5/16 X 1 WOODRUFF KEY

1шт.

6

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 X 1-1/4 RHSNB

4шт.

7

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

7шт.

8

663559R91

BEARING, BALL,1.5" ID

BEARING

2шт.

9

1666130

FLANGE

BEARING - flange

2шт.

10

700127632

FLANGE

BEARING - flange, special

2шт.

11

433-816

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5

1/2-13 X 1 RHSNB

3шт.
