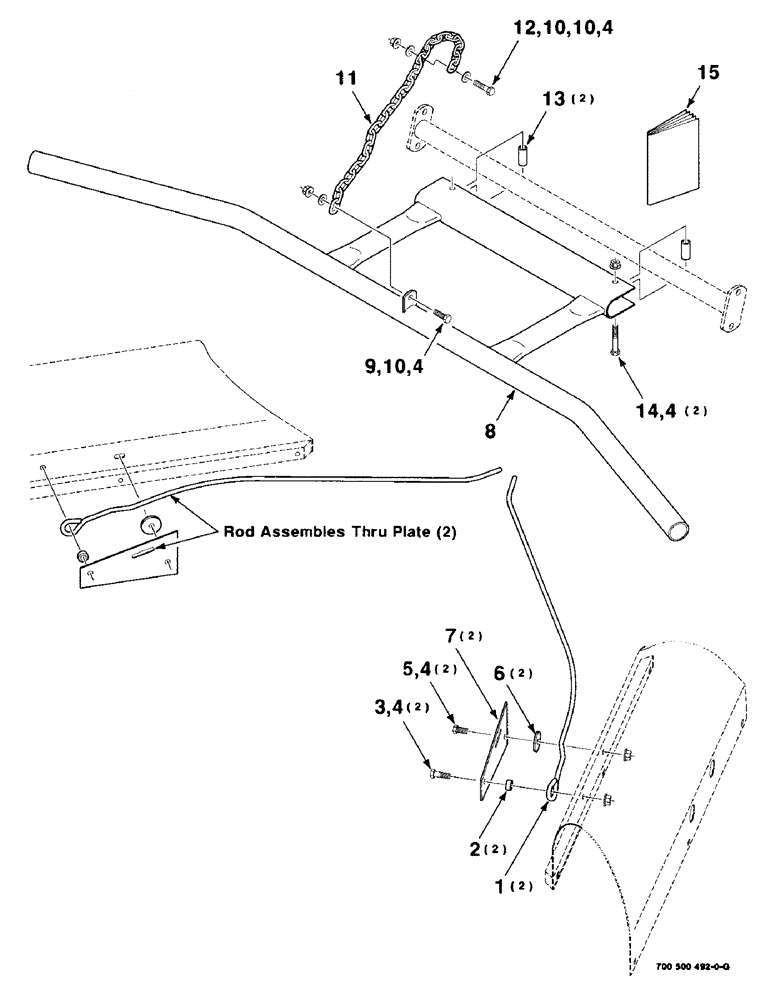

Запчасти Case IH 8750 (9-4) - SHORT CROP KIT (88) - ACCESSORIES

1

7758899

ROD

- spring

2шт.

2

6212740

SPACER

BUSHING

2шт.

3

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

4

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

8шт.

5

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

6

411579

WASHER

2шт.

7

6870406

BRACKET

- spring mounting

2шт.

8

6870356

PIPE

WA - floating

1шт.

9

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

10

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

3шт.

11

6559876

CHAIN (AG)

CHAIN

1шт.

12

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

13

6194914

BUSHING

SPACER

2шт.

14

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

15

700712965

INSTRUCTION

ASSEMBLY INSTRUCTIONS (Replaces 700712964)

1шт.
