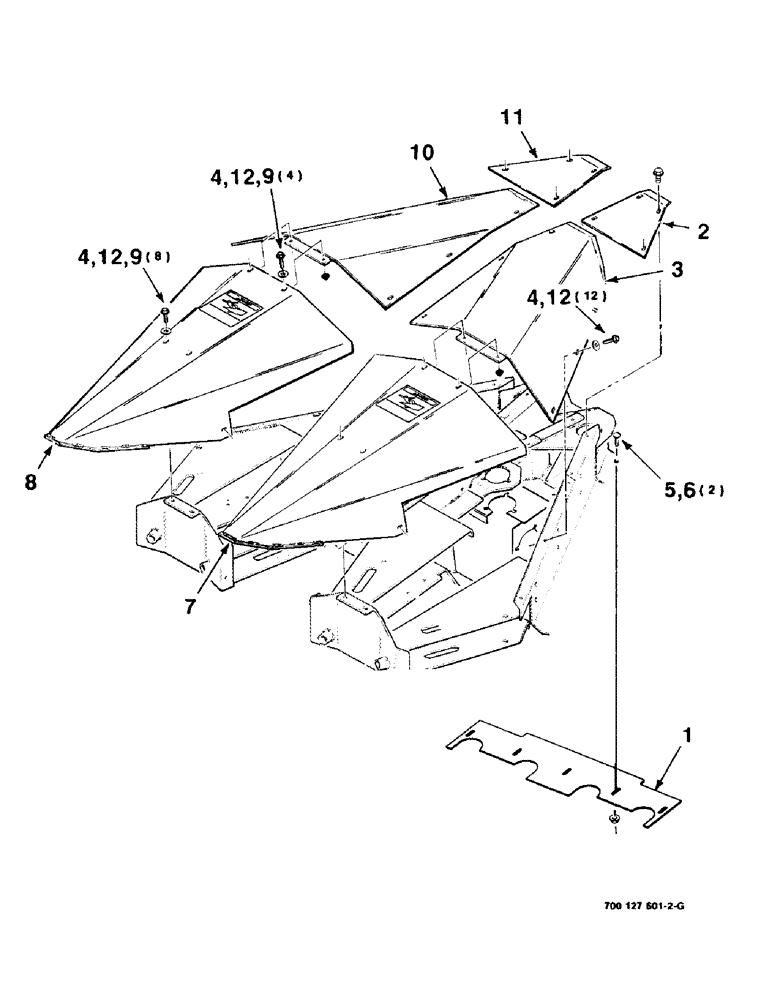

Запчасти Case IH 8750 (7-6) - SHIELDS ASSEMBLY, CONTINUED (58) - ATTACHMENTS/HEADERS

1

700127645

SHIELD

- gear

1шт.

2

6258479

SHIELD

- upper - left

1шт.

3

6258776

PANEL

ISLAND WA - upper, left

1шт.

4

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

24шт.

5

111-360

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 3/4", G5

2шт.

6

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

2шт.

7

6258511

SUPPORT TUBE

SNOUT WA - center, left

1шт.

8

6258487

SUPPORT TUBE

SNOUT WA - center, right

1шт.

9

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

12шт.

10

6258750

PANEL

ISLAND WA - upper, right

1шт.

11

6260699

SHIELD

- upper, right

1шт.

12

700710049

WASHER

3/8 FENDER WASHER

24шт.
