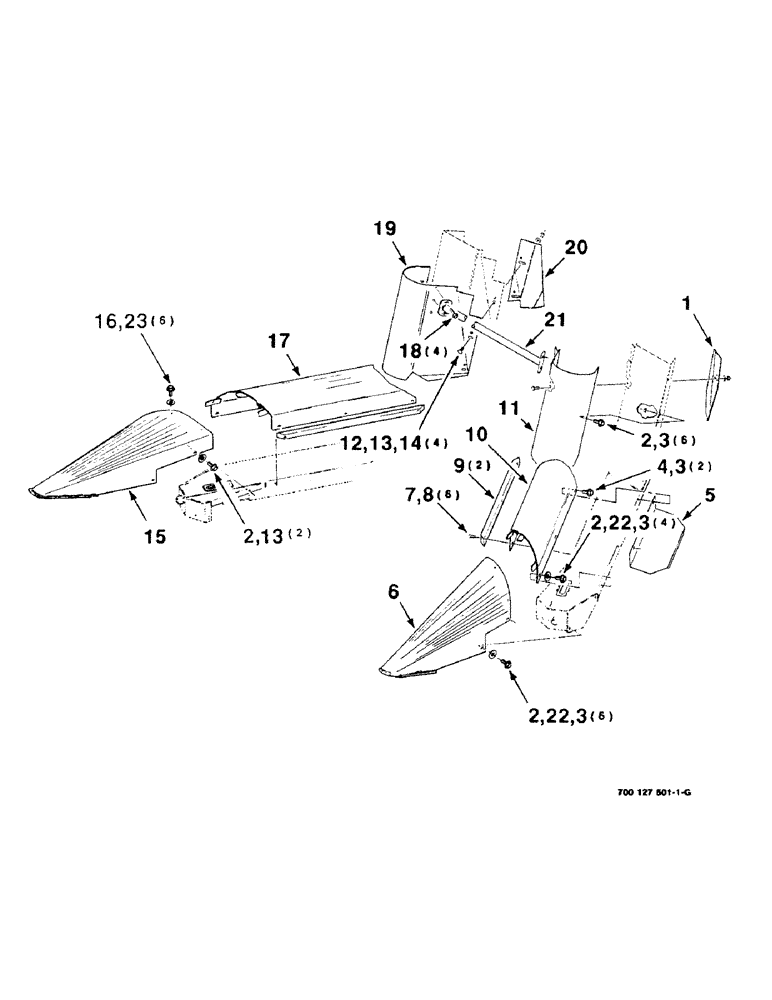

Запчасти Case IH 8750 (7-4) - SHIELDS ASSEMBLY (58) - ATTACHMENTS/HEADERS

1

700127652

DEFLECTOR

- left

1шт.

2

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

18шт.

3

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

18шт.

4

121-108

BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr

5/16-18 X 1 HWHMS

2шт.

5

700127646

SHIELD

- left

1шт.

6

6258537

SUPPORT TUBE

SNOUT WA - left

1шт.

7

434-524

CARRIAGE BOLT,Short NK, 5/16"-18 x 1 1/2", G5

5/16-18 X 1-1/2 RHSNB

6шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

6шт.

9

6455364

RUNNER

- chain, upper

2шт.

10

6258578

DIVIDER

WA - left

1шт.

11

700127648

SUPPORT

WRAPPER WA - left

1шт.

12

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

4шт.

13

496-81010

WASHER

3/8 HARDENED WIDE PLAIN WASHER

6шт.

14

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

4шт.

15

6258552

SUPPORT TUBE

SNOUT WA - right

1шт.

16

281-13712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

1/4-20 X 3/4 HWHTCTS

6шт.

17

6258628

DIVIDER

WA - right

1шт.

18

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

4шт.

19

700127650

SUPPORT

WRAPPER WA - right

1шт.

20

700127653

DEFLECTOR

- right

1шт.

21

6258719

BAR

WA - lean

1шт.

22

700710049

WASHER

3/8 FENDER WASHER

10шт.

23

495-21031

WASHER,1/4"

1/4 WIDE PLAIN WASHER

6шт.
