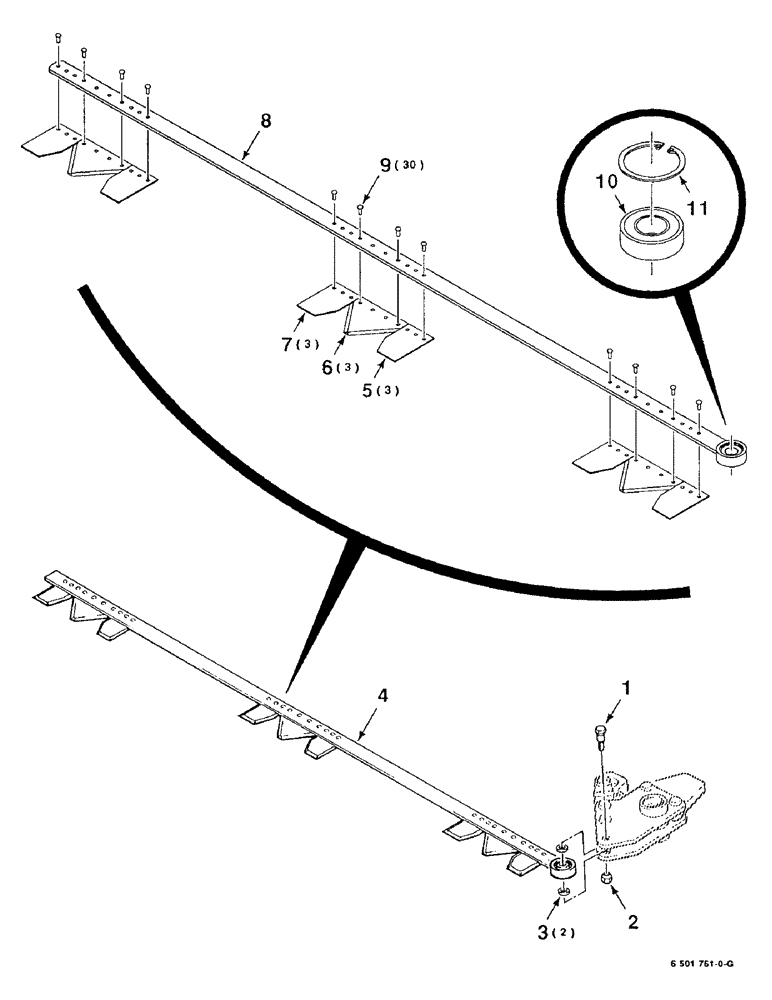

Запчасти Case IH 8750 (6-4) - SICKLE ASSEMBLY (58) - ATTACHMENTS/HEADERS

1

6230577

BOLT,Spcl, 9/16" - 18 x 2.6"

- special

1шт.

2

26757

NUT

9/16-18 LUG NUT

1шт.

3

6230643

SPACER

2шт.

4

6501761

KNIFE ASSY

SICKLE ASSEMBLY (Includes items 5 thru 11)

1шт.

5

6253801

CUTTER BAR

HALF SECTION - left

3шт.

6

49361

KNIFE SECTION

SECTION - sickle

3шт.

7

6253793

CUTTER BAR

HALF SECTION - right

3шт.

8

6506661

KNIFE ASSY

SICKLE BAR ASSEMBLY (Includes items 10 & 11)

1шт.

9

46-49

RIVET,Csk, 1/4" x 9/16"

30шт.

10

T39594

BALL BEARING,0.7505" ID x 1.7805" OD x 0.61"

BEARING

1шт.

11

100-21175

SNAP RING,1.75", Int, #175

Ring, Snap, 1.75", Int, #175

1шт.
