Запчасти Case IH 8750 (6-2) - KNIFE MOUNTING ASSEMBLY (58) - ATTACHMENTS/HEADERS

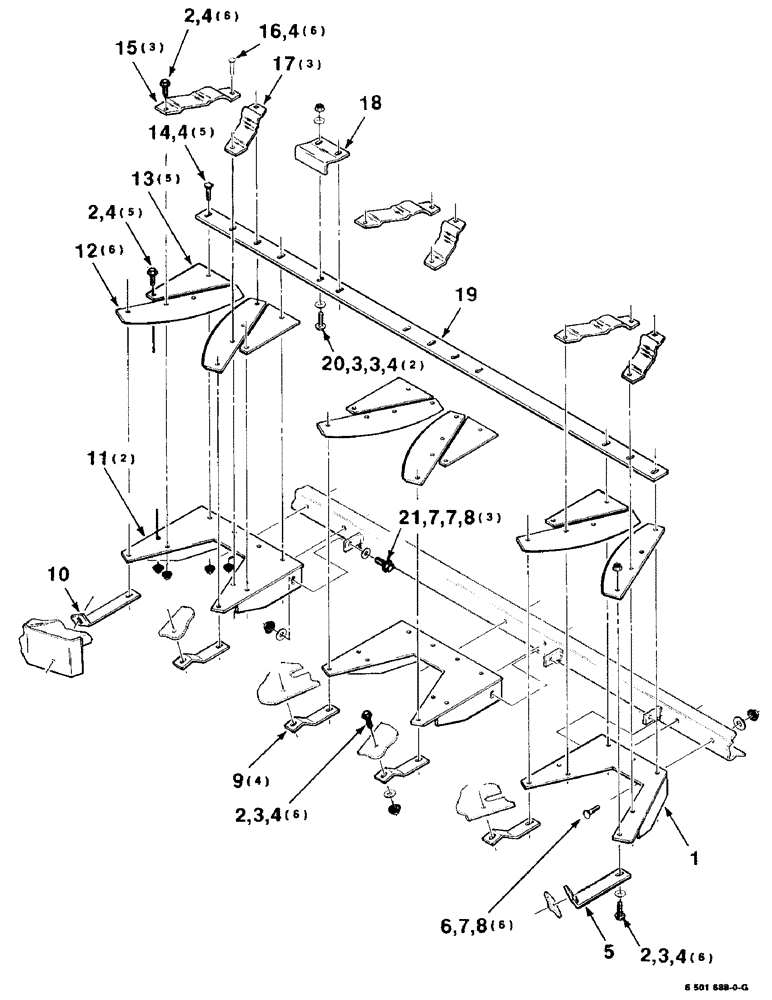

Схема запчастей Case IH 8750 - (6-2) - KNIFE MOUNTING ASSEMBLY (58) - ATTACHMENTS/HEADERS
4
21
8
3
9
8
10
4
14
18
4
2
11
3
12
3
7
7
2
4
13
3
4
2
4
20
2
7
6
15
5
4
17
16
19

Артикул

Название

Примечание

Количество

1

6253827

SUPPORT

WA - knife, left

1шт.

2

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

11шт.

3

496-81010

WASHER

3/8 HARDENED WIDE PLAIN WASHER

16шт.

4

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

36шт.

5

6259196

SUPPORT

SHINGLE - outer, left

1шт.

6

433-824

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

1/2-13 X 1-1/2 RHSNB

6шт.

7

700711557

WASHER

1/2 HARDENED WIDE PLAIN WASHER

12шт.

8

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

9шт.

9

6136725

SUPPORT

SHINGLE - inner

4шт.

10

6259188

SUPPORT

SHINGLE - outer, right

1шт.

11

6253819

SUPPORT

WA - knife, right

2шт.

12

49346

KNIFE

- side

6шт.

13

6182679

PLATE

- wear

5шт.

14

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

5шт.

15

6253876

CLIP, KNIFE

HOLDDOWN

3шт.

16

111-361

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/2", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/2", G5

6шт.

17

6259121

HOLDER

HOLDDOWN

3шт.

18

6259139

GUIDE

1шт.

19

6259170

SPACER

1шт.

20

121-237

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl

3/8-16 X 1-1/4 HFS GR8

14шт.

21

8701237

BOLT

1/2-13 X 1-1/2 HFS GR8

3шт.

Выбрано товаров: 21
