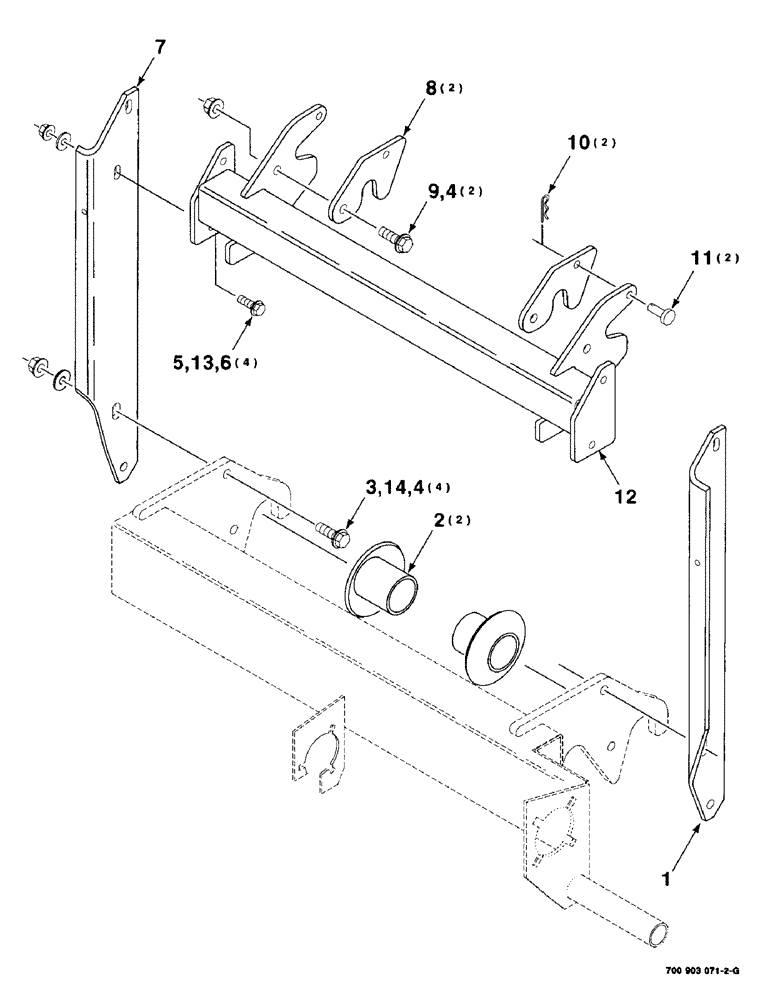

Запчасти Case IH 8750 (5-4) - REAR MOUNTING ASSEMBLY (58) - ATTACHMENTS/HEADERS

1

700127620

ANGLE

- left

1шт.

2

700127666

SPACER

WA

2шт.

3

700710982

BOLT

5/8-11 X 2 HFS GR8

4шт.

4

232-53110

FLANGE NUT,Flg, 5/8"-11

5/8-11 HFTLN GR/G

6шт.

5

8701237

BOLT

1/2-13 X 1-1/2 HFS GR8

4шт.

6

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

4шт.

7

700127622

ANGLE

- right

1шт.

8

700126120

SUPPORT

2шт.

9

700710148

BOLT,Hex Flg, 5/8" - 11 x 1 3/4", Gr 8

5/8-11 X 1-3/4 HFS GR8

2шт.

10

T54573

PIN

.120 HAIR PIN COTTER

2шт.

11

51200160

CLEVIS PIN

1/2 X 1 CLEVIS PIN

2шт.

12

700127635

BEAM

WA - upper

1шт.

13

700711557

WASHER

1/2 HARDENED WIDE PLAIN WASHER

4шт.

14

700711165

WASHER,17.3mm ID x 45.21mm OD x 4.06mm Thk

5/8 HARDENED WIDE PLAIN WASHER

4шт.
