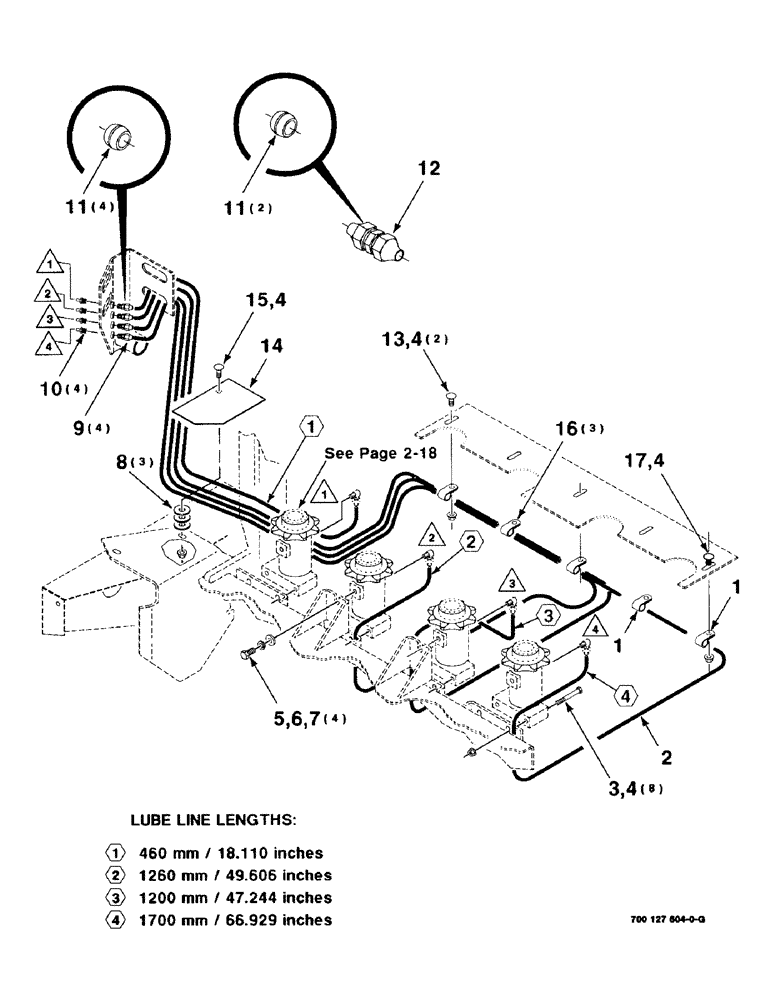

Запчасти Case IH 8750 (5-2) - LUBE ASSEMBLY (58) - ATTACHMENTS/HEADERS

1

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- line

2шт.

2

700113862

HOSE,50.00'

Line, Lube 50 Foot Bulk

1шт.

3

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

8шт.

4

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

12шт.

5

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

6

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

7

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

4шт.

8

700711557

WASHER

1/2 HARDENED WIDE PLAIN WASHER

3шт.

9

219-300

ROD, CONNECTING

CONNECTOR (Includes item 11)

4шт.

10

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1/8-27 ZERK

4шт.

11

30774V

FERRULE

SLEEVE - ball

6шт.

12

700706843

HYD CONNECTOR

UNION (Includes item 11)

1шт.

13

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

2шт.

14

700127667

SHIELD

1шт.

15

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

1шт.

16

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

Line 1/2", Insul, 1/2" Bolt

3шт.

17

111-360

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 3/4", G5

1шт.
