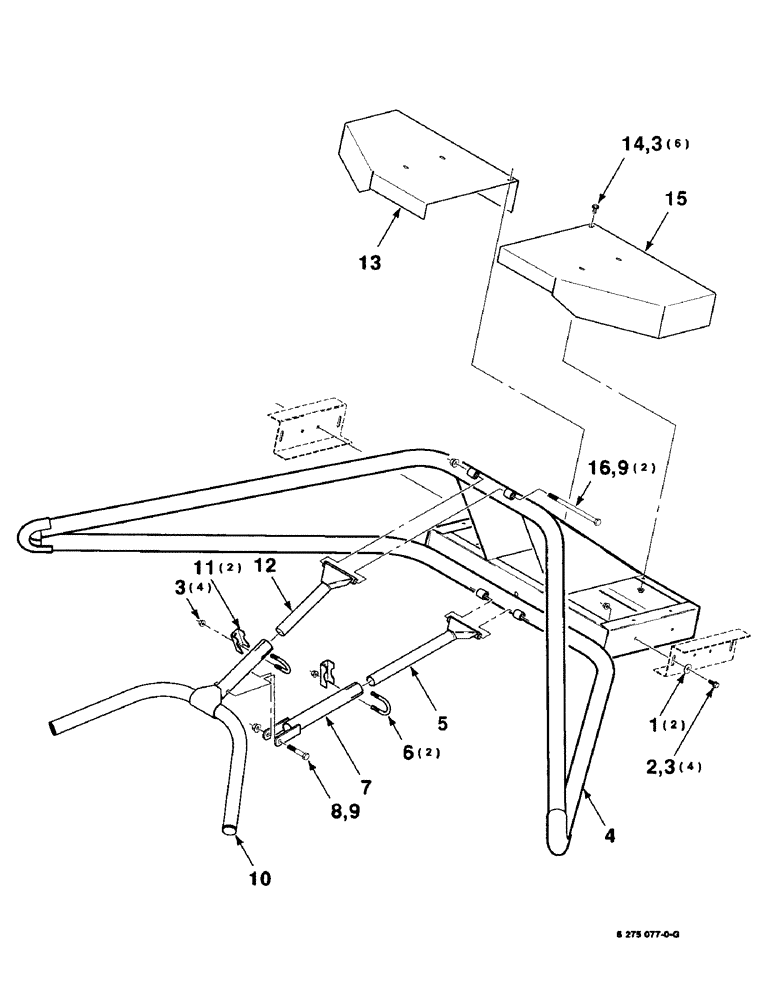

Запчасти Case IH 8750 (3-4) - GATHERER ASSEMBLY (58) - ATTACHMENTS/HEADERS

1

496-81010

WASHER

3/8 HARDENED WIDE PLAIN WASHER

2шт.

2

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

4шт.

3

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

14шт.

4

6259220

GATHERER

WA

1шт.

5

6260517

PIPE

WA - lower, inner

1шт.

6

6260632

U-BOLT,3/8" - 16 x 1 35/64"

3/8-16 U-BOLT

2шт.

7

6260566

PIPE

WA - upper, support

1шт.

8

703736

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

1/2-13 X 2-3/4 C

1шт.

9

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

3шт.

10

6260582

PIPE

GATHERER WA - upper, center

1шт.

11

6260640

BRACKET

- clamp

2шт.

12

6260541

PIPE

WA - upper, inner

1шт.

13

6259204

COVER

SHIELD - right

1шт.

14

409-7612

BOLT,3/8"-16 x 1.09" OAL

6шт.

15

6259212

COVER

SHIELD - left

1шт.

16

413-8128

BOLT,Hex, 1/2" - 13 x 8", Gr 5

1/2-13 X 8 GR 5 ZND.

2шт.
