Запчасти Case IH 8750 (3-2) - GATHERING ASSEMBLY (58) - ATTACHMENTS/HEADERS

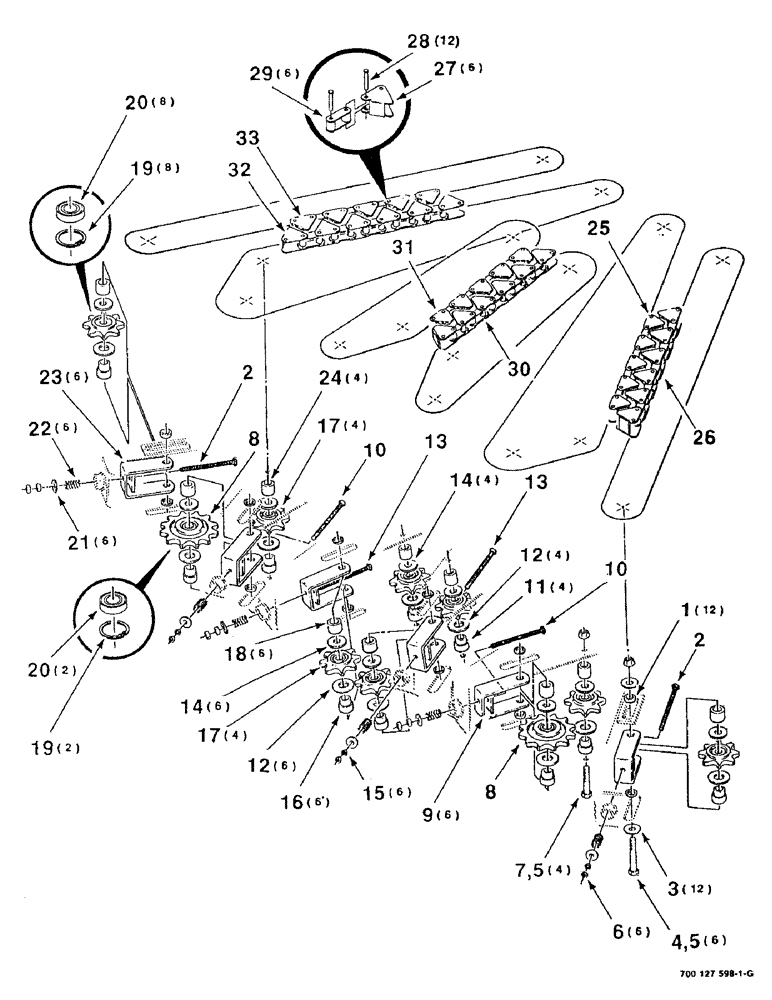

Схема запчастей Case IH 8750 - (3-2) - GATHERING ASSEMBLY (58) - ATTACHMENTS/HEADERS
7
16
17
8
8
18
24
6
27
31
17
14
23
4
32
12
5
1
3
30
14
20
19
29
13
12
26
28
5
22
19
10
11
25
13
20
15
9
2
21
33
10
2

Артикул

Название

Примечание

Количество

1

6182406

SPACER

12шт.

2

7770837

BOLT,Sq Nk, 1/2" - 13 x 6", Gr 5, Full Thd

1/2-13 X 6 FTRHSNB

2шт.

3

700711166

WASHER

3/4 HARDENED WIDE PLAIN WASHER

12шт.

4

7883002

BOLT,Hex 3/4" - 10 x 5 1/2", Gr 5

3/4-10 X 5-1/2 C

6шт.

5

232-53112

FLANGE NUT,Flg, 3/4"-10

3/4-10 HFTLN GR/G

10шт.

6

425-148

JAM NUT,Jam, 1/2"-13, G5

6шт.

7

413-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

4шт.

8

6234348

FRONT IDLER

SPROCKET - idler 12T (Includes items 19 & 20)

2шт.

9

6136923

PLATE

6шт.

10

7770852

BOLT,Sq Nk, 1/2" - 13 x 6 1/2", Gr 5, Full Thd

1/2-13 X 6-1/2 FTRHSNB

2шт.

11

6233993

SPACER

JOURNAL SPACER

4шт.

12

6182455

SHIELD

LOWER SHIELD

10шт.

13

7770894

BOLT,Sq Nk, 1/2" - 13 x 7 1/2", Gr 5, Full Thd

1/2-13 X 7-1/2 FTRHSNB

2шт.

14

6182463

SHIELD

UPPER - shield

10шт.

15

425-108

NUT,1/2" - 13, Gr 5

NUT, 1/2"-13, G5

6шт.

16

6136980

SPACER

JOURNAL - spacer

6шт.

17

6234322

FRONT IDLER

SPROCKET - idler 8T (Includes items 19 & 20)

8шт.

18

6136972

SPACER

6шт.

19

52035

RING, SNAP

RING - retaining

10шт.

20

714287

BEARING, ROLLER, CYL,30 mm ID x 62 mm OD

BEARING - cylindrical

10шт.

21

385625

WASHER

6шт.

22

858530

BRACKET

SPRING - compression

6шт.

23

6136949

BRACKET

IDLER - bracket

6шт.

24

6234017

SPACER

4шт.

25

7085707

CHAIN (AG)

GATHERING - chain (Includes item 27)

1шт.

26

7047376

CHAIN (AG)

GATHERING - chain (Includes item 27)

1шт.

27

700703570

REPAIR KIT

KIT - chain, repair (Includes items 28 & 29)

6шт.

28

700703559

RIVET

PIN - rivet

12шт.

29

7085426

LINK

- roller

6шт.

30

7089147

CHAIN (AG)

GATHERING - chain (Includes item 27)

1шт.

31

7089139

CHAIN (AG)

GATHERING - chain (Includes item 27)

1шт.

32

7085707

CHAIN (AG)

GATHERING - chain (Includes item 27)

1шт.

33

7047756

CHAIN (AG)

GATHERING - chain (Includes item 27)

1шт.

Выбрано товаров: 33
