(2-16) - GATHERING DRIVE ASSEMBLY, RIGHT

Запчасти Case IH 8750 (2-16) - GATHERING DRIVE ASSEMBLY, RIGHT (58) - ATTACHMENTS/HEADERS

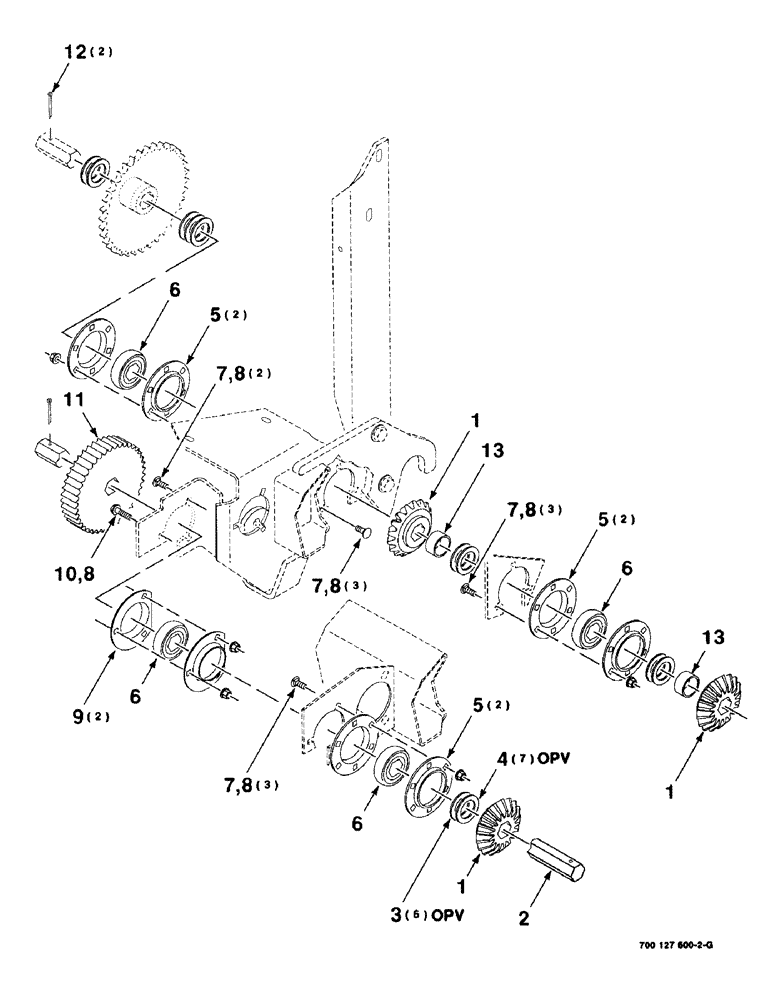

Схема запчастей Case IH 8750 - (2-16) - GATHERING DRIVE ASSEMBLY, RIGHT (58) - ATTACHMENTS/HEADERS
2
8
6
6
12
7
7
11
1
6
10
8
5
8
8
5
1
6
9
7
8
1
5
13
13
7
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

7750870

GEAR, BEVEL

BEVEL GEAR

3шт.

2

700127631

SHAFT

1шт.

3

NLS

NO LONGER SERVICED

1-1/2 X 14 GAUGE NRMB

6шт.

4

52712

BUSHING

1-1/2 X 18 GAUGE NRMB

7шт.

5

825620C1

RETAINER

- bearing, special

6шт.

6

714519

SPHERICAL BEARING,1.25" ID x 72 mm OD

BEARING - spherical, hex bore

4шт.

7

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

11шт.

8

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

12шт.

9

163733

FLANGE

- bearing

2шт.

10

700711084

BOLT

3/8-16 X 1-1/2 HFS GR8

1шт.

11

7753676

GEAR

SPUR GEAR - 42 T

1шт.

12

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

2шт.

13

6258842

SPACER

2шт.
