Запчасти Case IH 8750 (2-14) - GATHERING DRIVE ASSEMBLY, CENTER (58) - ATTACHMENTS/HEADERS

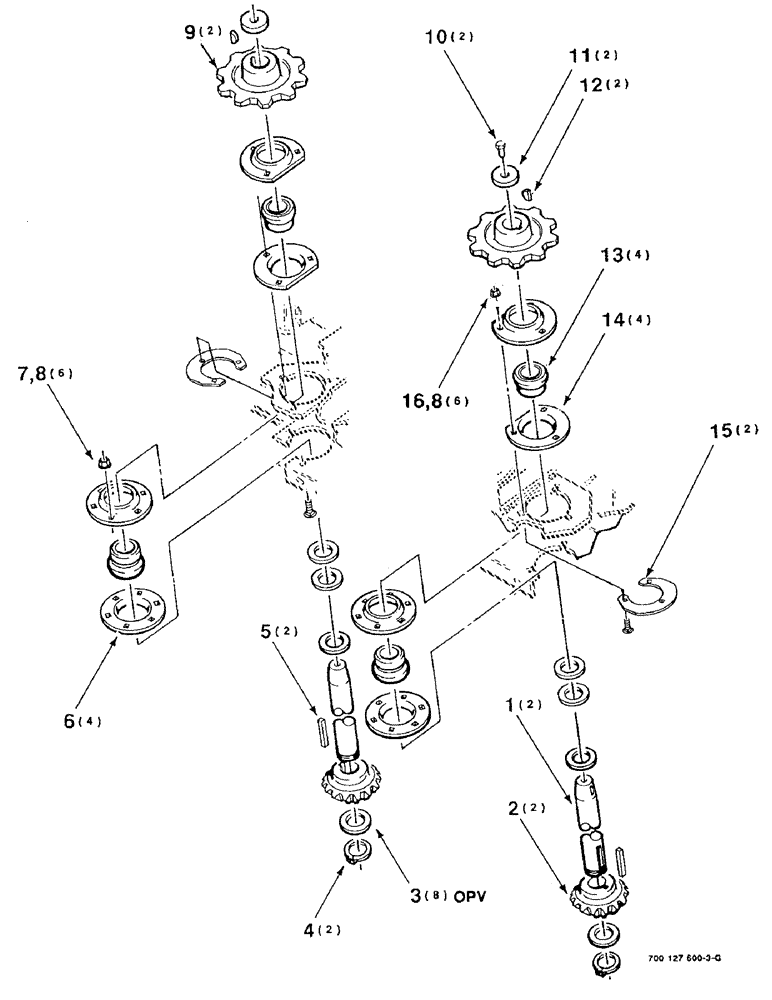

Схема запчастей Case IH 8750 - (2-14) - GATHERING DRIVE ASSEMBLY, CENTER (58) - ATTACHMENTS/HEADERS
4
6
2
14
3
9
11
8
5
15
13
12
1
16
8
10
7

Артикул

Название

Примечание

Количество

1

6258933

SHAFT

GEAR - shaft

2шт.

2

7893480

GEAR, BEVEL

BEVEL - gear

2шт.

3

495-81205

WASHER,32.54mm ID x 50.8mm OD x 1.7mm Thk

1-1/4 X 14 GAUGE NRMB

8шт.

4

103-16125

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

2шт.

5

61713

KEY

1/4 X 1/4 X 1-3/8 STRAIGHT KEY

2шт.

6

712612

FLANGE

- bearing

4шт.

7

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

6шт.

8

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

12шт.

9

6258941

SPROCKET ASSY.

SPROCKET - 10 tooth

2шт.

10

414-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

1/2-20 X 1 C

2шт.

11

6246367

WASHER

- special

2шт.

12

61309

WOODRUFF KEY,#91, 1/4" x 3/4"

1/4 X 3/4 WOODRUFF KEY

2шт.

13

485259R91

BEARING ASSY,1.2505" ID x 72 mm OD x 1.4844"

4шт.

14

NLS

NO LONGER SERVICED

- bearing

4шт.

15

700127740

PLATE

- reinf

2шт.

16

111-361

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/2", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/2", G5

6шт.

Выбрано товаров: 16
