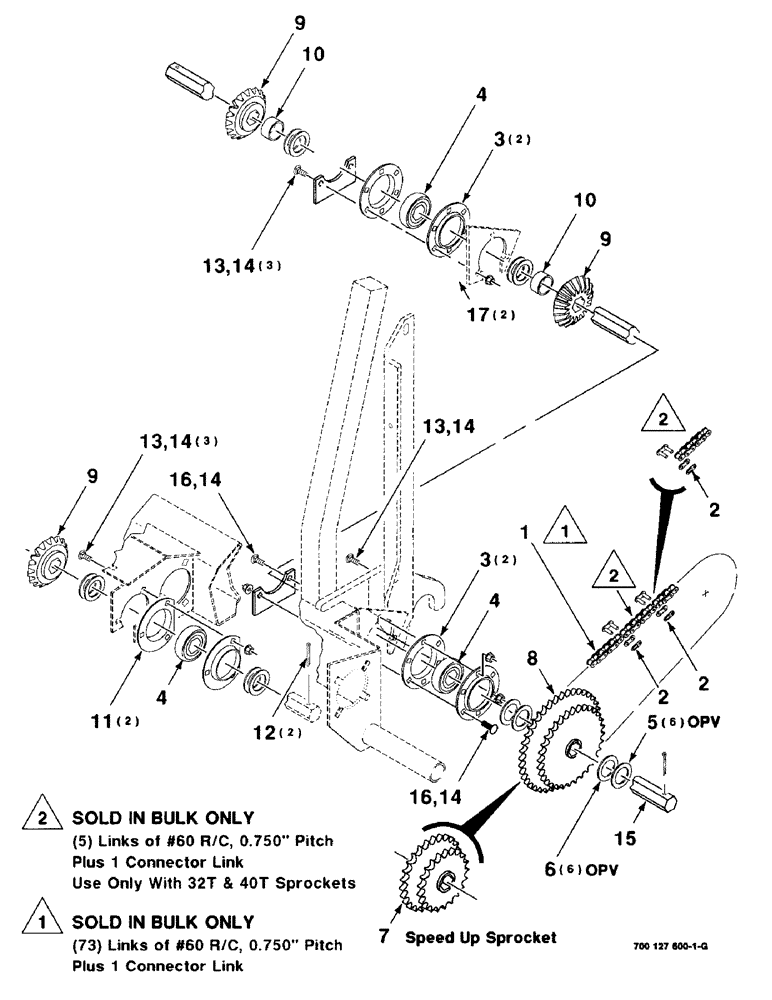

Запчасти Case IH 8750 (2-12) - GATHERING DRIVE ASSEMBLY, LEFT (58) - ATTACHMENTS/HEADERS

1

611362R91

CHAIN (AG)

CHAIN - roller, #60 (10 foot bulk)

1шт.

2

241-1316

LINK,19.05mm Pitch

CONNECTOR LINK - #60 R/C

3шт.

3

825620C1

RETAINER

FLANGE - bearing, special

4шт.

4

714519

SPHERICAL BEARING,1.25" ID x 72 mm OD

BEARING - spherical, hex bore

3шт.

5

52712

BUSHING

1-1/2 X 18 GAUGE NRMB

6шт.

6

52282

BUSHING

1-1/2 X 14 GAUGE NRMB

6шт.

7

700127627

SPROCKET ASSY.

SPROCKET WA "C" 21-26

1шт.

8

700127676

SPROCKET ASSY.

SPROCKET WA "C" 32-40

1шт.

9

7750870

GEAR, BEVEL

BEVEL GEAR

3шт.

10

6258842

SPACER

2шт.

11

163733

FLANGE

- bearing

2шт.

12

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

2шт.

13

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

7шт.

14

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

9шт.

15

700127624

SHAFT

HEX SHAFT

1шт.

16

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

2шт.

17

700127625

PLATE

REINFORCEMENT

2шт.
