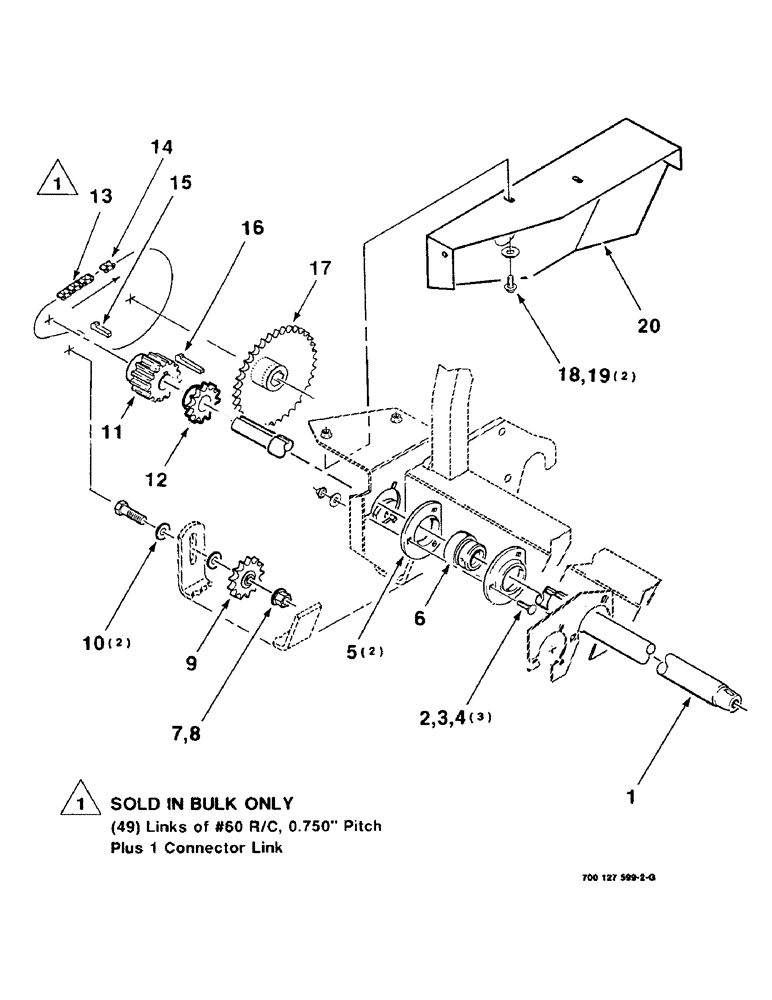

Запчасти Case IH 8750 (2-10) - HEADER DRIVE ASSEMBLY, RIGHT (58) - ATTACHMENTS/HEADERS

1

1666114

SHAFT

1шт.

2

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

3шт.

3

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

3шт.

4

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

3шт.

5

NLS

NO LONGER SERVICED

- bearing

2шт.

6

611583R91

BALL BEARING

BEARING

1шт.

7

701771

SUPPORT

5/8-11 X 2-1/4 C

1шт.

8

232-53110

FLANGE NUT,Flg, 5/8"-11

5/8-11 HFTLN GR/G

1шт.

9

154113C91

DRIVE SPROCKET

SPROCKET - idler, 13 tooth

1шт.

10

700711165

WASHER,17.3mm ID x 45.21mm OD x 4.06mm Thk

5/8 HARDENED WIDE PLAIN WASHER

3шт.

11

7753668

GEAR

SPUR GEAR

1шт.

12

7047707

SPROCKET ASSY.

SPROCKET - 12 tooth

1шт.

13

611362R91

CHAIN (AG)

CHAIN - roller, #60 (10 foot bulk)

1шт.

14

241-1316

LINK,19.05mm Pitch

CONNECTOR LINK - #60 R/C

1шт.

15

Q3929

KEY,Gib, 5/16" Sq x 1 1/2"

5/16 X 5/16 X 1-1/2 GIB KEY

1шт.

16

61895

BUCKET TOOTH KEY

5/16 X 5/16 X 2-1/4 GIB KEY

1шт.

17

7085871

SPROCKET ASSY.

SPROCKET - 36 tooth

1шт.

18

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

2шт.

19

496-81010

WASHER

3/8 HARDENED WIDE PLAIN WASHER

2шт.

20

700127661

SHIELD

- right

1шт.
