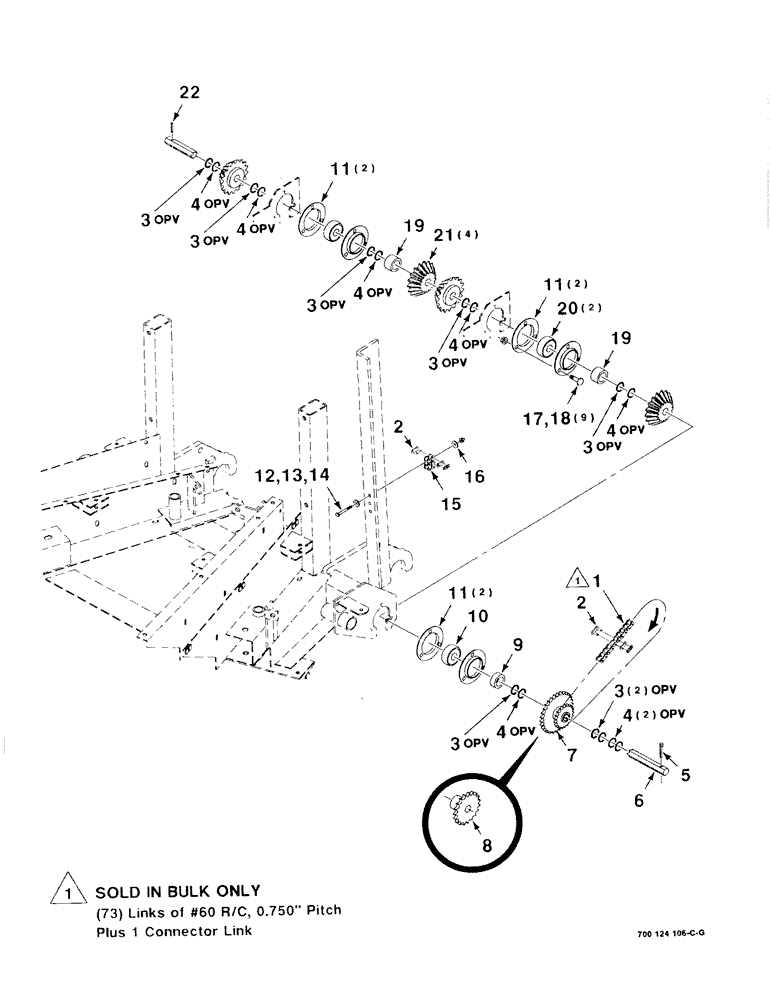

Запчасти Case IH 8750 (2-4) - DRIVE ASSEMBLY, 38 INCH ROW (58) - ATTACHMENTS/HEADERS

1

611362R91

CHAIN (AG)

#60 ROLLER CHAIN (10 foot bulk)

1шт.

2

611361R91

DRAG LINK

LINK - connector

2шт.

3

52266

WASHER

1-1/4 x 14 GAUGE NRMB

8шт.

4

740068

VALVE

1-1/4 x 18 GAUGE NRMB

8шт.

5

62299

PIN

1/4 x 1-1/2 COTTER PIN

1шт.

6

700124137

SHAFT

1шт.

7

700126241

SPROCKET ASSY.

SPROCKET WA - double (25 & 14 tooth)

1шт.

8

700126267

SPROCKET ASSY.

SPROCKET WA - 19 tooth (optional)

1шт.

9

700124136

SPACER

1шт.

10

713172

SPHERICAL BEARING,1" ID x 62 mm OD x 24 mm

BEARING

1шт.

11

50534

FLANGED BEARING

6шт.

12

7773849

BOLT,Hex, 1/4" - 20 x 2 1/4", Gr 5

1/4-20 x 2-1/4 C

1шт.

13

705517

WASHER

1/4 HARDENED PLAIN WASHER

1шт.

14

1703354

NUT

1/4-HFTLN GR/G

1шт.

15

7085251

CHAIN (AG)

CHAIN - roller

1шт.

16

700709602

WASHER,5/16"

5/16 WIDE PLAIN WASHER

1шт.

17

700047

BOLT

3/8-16 x RHSNB

9шт.

18

704734

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

9шт.

19

700112503

SPACER

2шт.

20

7713605

BALL BEARING,25.88 mm ID x 62.1 mm OD x 23.98 mm

BEARING

2шт.

21

7745540

GEAR

- bevel

4шт.

22

63107

LOCK PIN,1/4" x 1 1/2", Slotted

PIN, LOCK, 1/4" x 1 1/2", Slotted

1шт.
