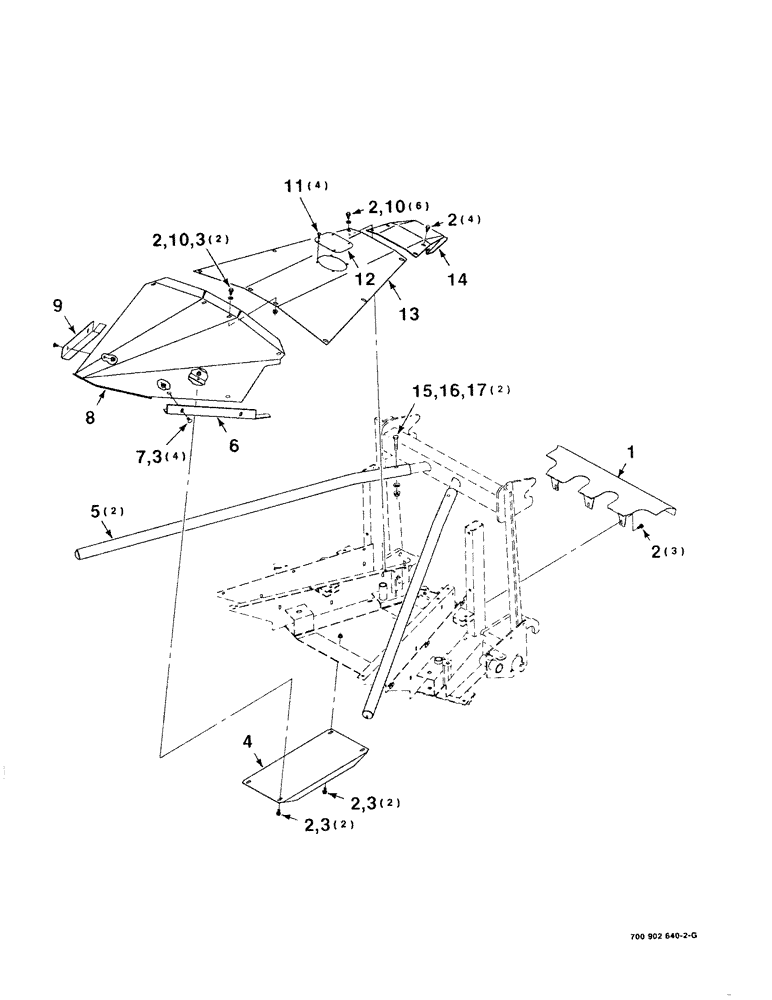

Запчасти Case IH 8750 (7-06) - CENTER SHIELDS ASSEMBLY, 30 INCH ROW (58) - ATTACHMENTS/HEADERS

1

700124113

SHIELD

- gear (S.N. CFH0069001 thru -69055)

1шт.

700126536

SHIELD

- gear (S.N. CFH0069056 and later)

1шт.

2

7883374

SCREW,Hex Washer, 3/8" - 16 x 3/4"

3/8-16 x 3/4 HWHMS

19шт.

3

704734

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

10шт.

4

6535082

SUPPORT

- snout, center

1шт.

5

700124174

PIPE

WA - bull horn

2шт.

6

700124133

ANGLE

- wear, left

1шт.

7

7700065

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8-16 x 3/4 RHSNB

4шт.

8

6535447

SHIELD

SNOUT WA - center

1шт.

9

700124134

ANGLE

- wear, right

1шт.

10

700710049

WASHER

3/8 FENDER WASHER

8шт.

11

7883267

BOLT,Hex, 1/4" - 20 x 1/2", Gr 120M

1/4-20 x 1/2 HWHMS

4шт.

12

389668

PLATE

- cover

1шт.

13

6535488

PANEL

ISLAND - rear (S.N. CFH0069001 thru -69055)

1шт.

700127626

PANEL

ISLAND - rear (S.N. CFH0069056 and later)

1шт.

14

700124124

PLATE

WA - rear

1шт.

15

70922526

SCREW

1/2-13 x 2-1/2 C

2шт.

16

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

2шт.

17

704742

ROD

1/2-13 HFTLN GR/G

2шт.
