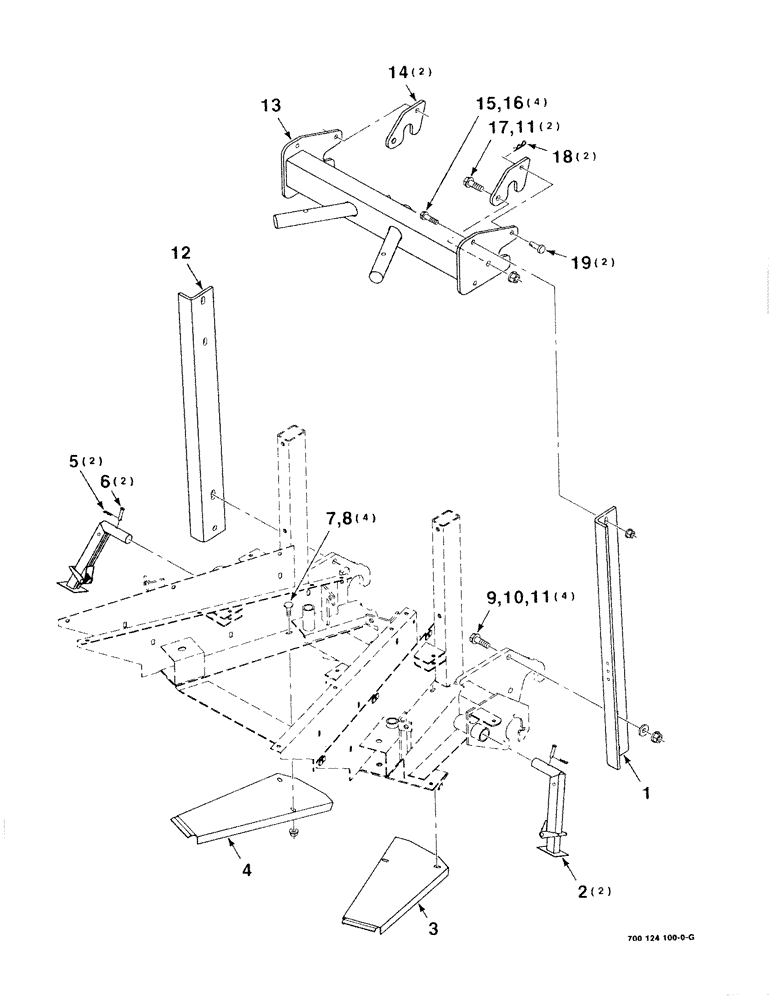

Запчасти Case IH 8750 (7-02) - MAINFRAME ASSEMBLY, 30 INCH ROW (58) - ATTACHMENTS/HEADERS

1

700124176

ANGLE

- left

1шт.

2

6897979

WASHER

JACK - support

2шт.

3

6535421

PAN

- trough, left

1шт.

4

6535439

PAN

- trough, right

1шт.

5

62349

LOCK WASHER

.148 WIRE HAIR PIN COTTER

2шт.

6

63644

CLEVIS PIN

3/8 x 2-1/8 CLEVIS PIN

2шт.

7

7700065

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8-16 X 3/4 RHSNB

4шт.

8

704734

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

4шт.

9

700710982

BOLT

5/8-11 x 2 HFS GR8

4шт.

10

705582

WASHER

5/8 HARDENED PLAIN WASHER

4шт.

11

700703922

LOCK NUT,Flg, 5/8"-11

5/8-11 HFTLN GR/G

6шт.

12

700124177

ANGLE

- right

1шт.

13

700124163

BEAM

WA - upper

1шт.

14

700126120

SUPPORT

2шт.

15

8701237

BOLT

1/2-13 x 1-1/2 HFS GR8

4шт.

16

704742

ROD

1/2-13 HFTLN GR/G

4шт.

17

700710148

BOLT,Hex Flg, 5/8" - 11 x 1 3/4", Gr 8

5/8-11 x 1-3/4 HFS GR8

2шт.

18

62521

COTTER PIN

.120 WIRE HAIR PIN COTTER

2шт.

19

762351

TUBE

1/2 x 1 CLEVIS PIN

2шт.
