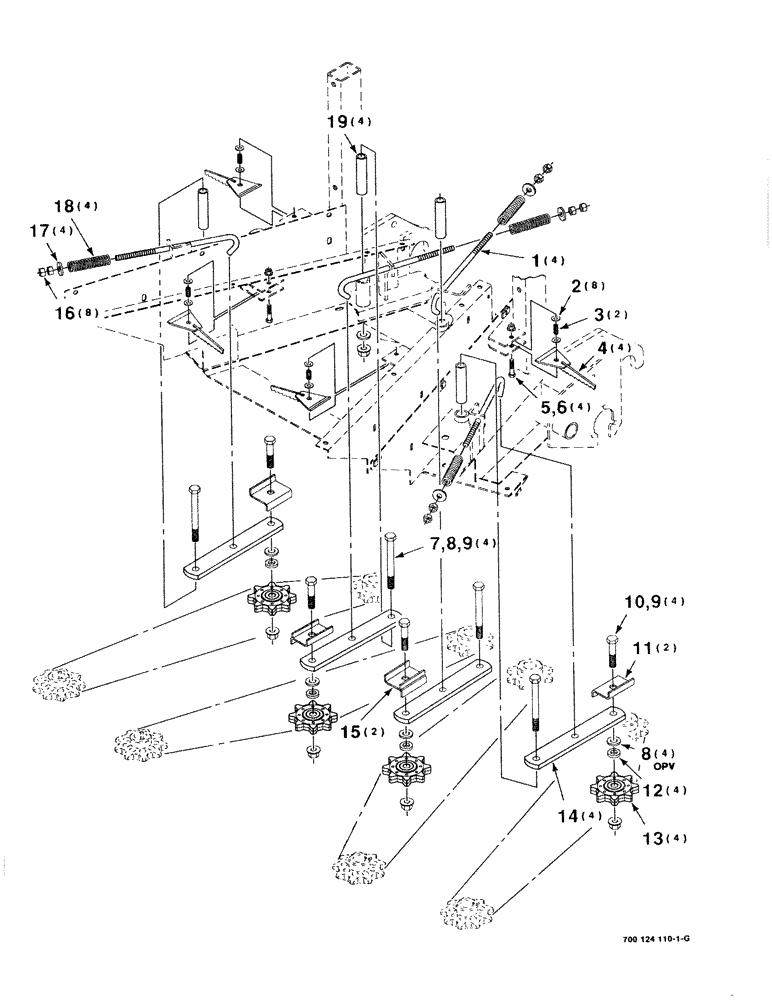

Запчасти Case IH 8750 (3-16) - GATHERING CHAIN TENSIONER ASSEMBLY, 38 INCH ROW (58) - ATTACHMENTS/HEADERS

1

6534556

ROD

- spring

4шт.

2

705533

WASHER

3/8 HARDENED PLAIN WASHER

8шт.

3

58511

COMPRESSION SPRING

SPRING - compression

2шт.

4

6534432

RATCHET

WA

4шт.

5

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

3/8-16 x 1-3/4 C

4шт.

6

704734

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

4шт.

7

7771017

SPECIAL BOLT,5/8" - 11 x 6", Gr 5

5/8-11 x 6 C

4шт.

8

NLS

NO LONGER SERVICED

5/8 HARDENED PLAIN WASHER

8шт.

9

700703922

LOCK NUT,Flg, 5/8"-11

5/8-11 HFTLN GR/G

8шт.

10

7701683

BOLT,Hex, 5/8" - 11 x 3", Gr 5

5/8-11 x 3 C

4шт.

11

6534473

BRACKET

- ratchet

2шт.

12

51200204

SPACER

4шт.

13

849844

DRIVE SPROCKET

SPROCKET - idler

4шт.

14

6534549

ARM

- idler

4шт.

15

6534457

BRACKET

WA - ratchet

2шт.

16

704031

NUT

1/2-13 H

8шт.

17

385625

WASHER

4шт.

18

858019

SPRING

- compression

4шт.

19

6534564

SPACER

4шт.
