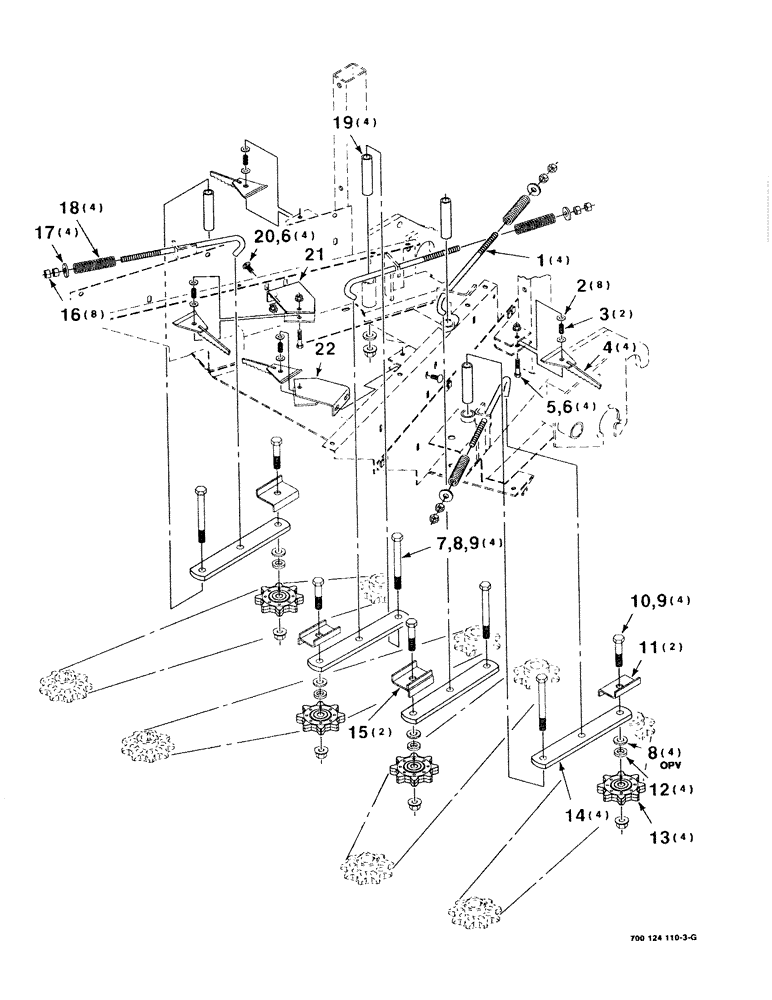

Запчасти Case IH 8750 (3-14) - GATHERING CHAIN TENSIONER ASSEMBLY, 30 INCH ROW (58) - ATTACHMENTS/HEADERS

1

6534556

ROD

- spring

4шт.

2

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

3/8 HARDENED PLAIN WASHER

8шт.

3

58511

COMPRESSION SPRING

SPRING - compression

2шт.

4

6534432

RATCHET

WA

4шт.

5

7701055

LEVER,Hex, 3/8" - 16 x 1 3/4", Gr 5

3/8-16 x 1-3/4 C

4шт.

6

704734

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

8шт.

7

7771017

SPECIAL BOLT,5/8" - 11 x 6", Gr 5

5/8-11 x 6 C

4шт.

8

705582

WASHER

5/8 HARDENED PLAIN WASHER

8шт.

9

700703922

LOCK NUT,Flg, 5/8"-11

5/8-11 HFTLN GR/G

8шт.

10

7701683

BOLT,Hex, 5/8" - 11 x 3", Gr 5

5/8-11 x 3 C

4шт.

11

6534473

BRACKET

- ratchet

2шт.

12

320184

SPACER

4шт.

13

849844

DRIVE SPROCKET

SPROCKET - idler

4шт.

14

6534549

ARM

- idler

4шт.

15

6534457

BRACKET

WA - ratchet

2шт.

16

86516876

COVER

1/2-13 H

8шт.

17

385625

WASHER

4шт.

18

858019

SPRING

- compression

4шт.

19

6534564

SPACER

4шт.

20

700047

BOLT

3/8-16 x RHSNB

4шт.

21

6535595

RATCHET

MOUNTING WA - right

1шт.

22

6535579

RATCHET

MOUNTING WA - left

1шт.
