Запчасти Case IH 8750 (3-08) - SPINDLE ASSEMBLY, OUTER, RIGHT (58) - ATTACHMENTS/HEADERS

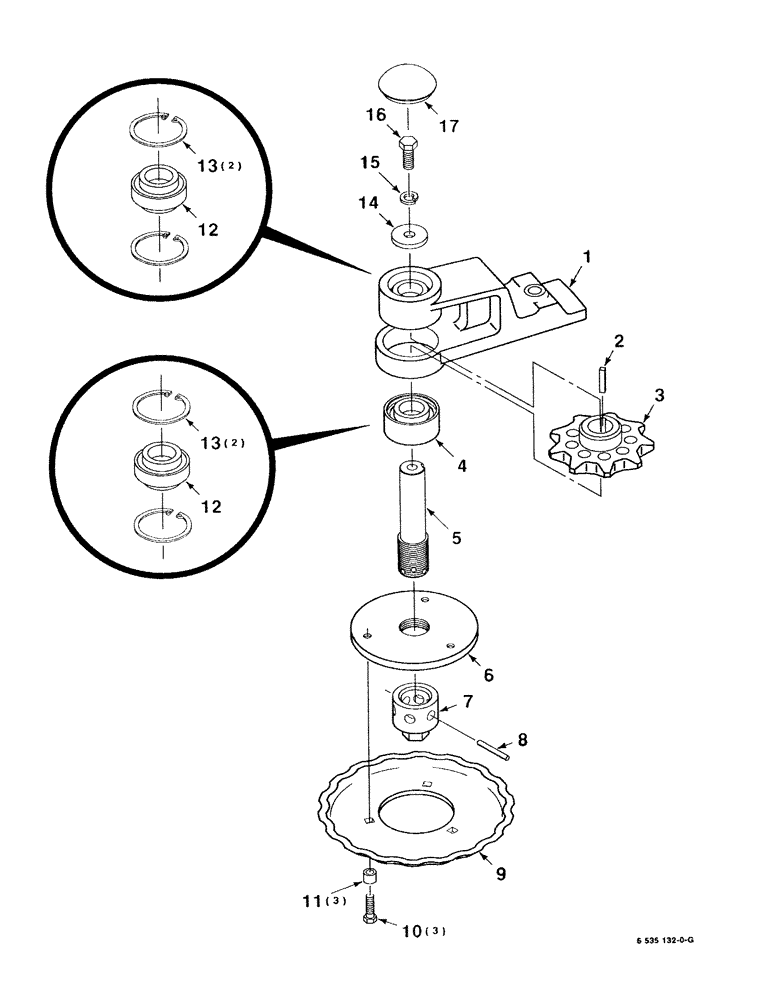

Схема запчастей Case IH 8750 - (3-08) - SPINDLE ASSEMBLY, OUTER, RIGHT (58) - ATTACHMENTS/HEADERS
7
13
16
15
6
2
8
3
12
17
10
1
12
4
14
13
5
9
11

Артикул

Название

Примечание

Количество

1

6534333

BEARING ASSY

MOUNT - bearing (Includes items 12 & 13)

1шт.

2

61713

KEY

1/4 x 1/4 x 1-3/8 STRAIGHT KEY

1шт.

3

850206

DRIVE SPROCKET

SPROCKET

1шт.

4

6534358

BEARING ASSY

ASSEMBLY (Includes items 12 & 13)

1шт.

5

6534291

SHAFT

- right hand thread

1шт.

6

6534283

LARGE PLATE

PLATE - right hand thread

1шт.

7

6534408

NUT

NUT WA - right hand thread

1шт.

8

38-11632

LOCK PIN,1/4" x 2", Slotted

Pin, 1/4" x 2", Slotted

1шт.

9

700703273

DISC

- cutoff

1шт.

700711278

DISC

- cutoff, hardfaced

1шт.

10

702035

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5, Full Thd

3/8-16 x 1-1/4 C

3шт.

11

442178

BUSHING

3шт.

12

7713597

BALL BEARING,31.763 mm ID x 62 mm OD x 36.513 mm

- cylinder

2шт.

13

52035

RING, SNAP

RING - retaining

4шт.

14

282269

WASHER

1шт.

15

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

16

7701188

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 C

1шт.

17

26930

CAP

- hub

1шт.

Выбрано товаров: 18
