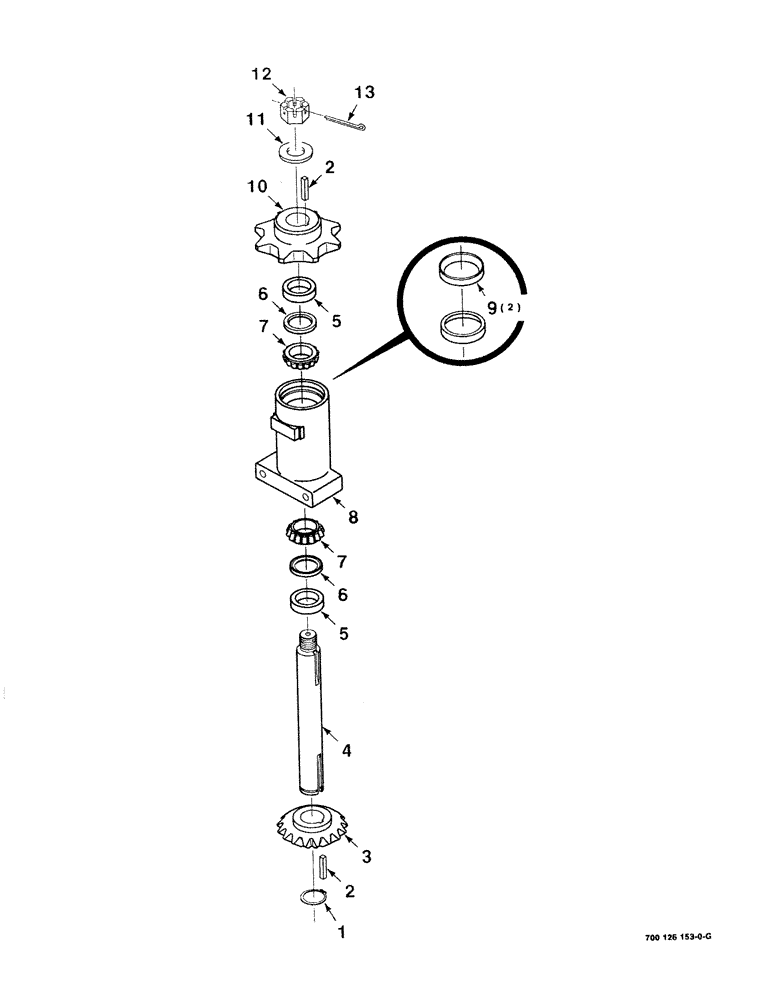

Запчасти Case IH 8750 (3-04) - DRIVE ASSEMBLY (58) - ATTACHMENTS/HEADERS

1

852137

RING, SNAP

RING - retaining

1шт.

2

61713

KEY

1/4 x 1/4 x 1-3/8 STRAIGHT KEY

2шт.

3

7893480

GEAR, BEVEL

GEAR - bevel

1шт.

4

6534499

SHAFT

1шт.

5

6458160

SPACER

2шт.

6

844993

OIL SEAL

2шт.

7

711507

ROLLER BEARING,31.77 mm ID x 16.764 mm

CONE - bearing

2шт.

8

700126168

HOUSING

ASSEMBLY (Includes item 9)

1шт.

9

711242

BEARING CUP

CUP - bearing

2шт.

10

849851

DRIVE SPROCKET

SPROCKET

1шт.

11

96-11094

WASHER,0.94" ID x 1.75" OD x 0.13" Thk

7/8 HARDENED PLAIN WASHER

1шт.

12

7774607

JAM NUT

7/8-14 HEX CASTLE NUT

1шт.

13

62190

PIN

5/32 x 1-1/2 COTTER PIN

1шт.
