Запчасти Case IH 8750 (3-02) - CUTOFF DISC MOUNTING, LUBE AND GUIDE ASSEMBLY (58) - ATTACHMENTS/HEADERS

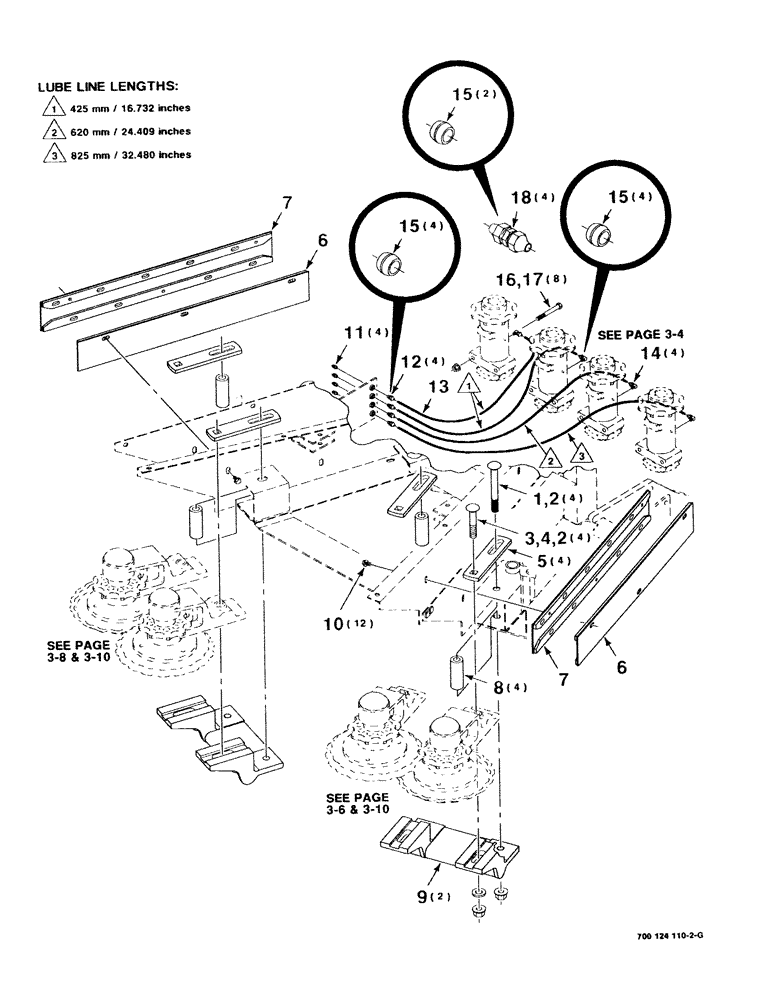

Схема запчастей Case IH 8750 - (3-02) - CUTOFF DISC MOUNTING, LUBE AND GUIDE ASSEMBLY (58) - ATTACHMENTS/HEADERS
11
9
2
4
10
12
7
16
13
1
15
8
15
6
2
15
5
18
17
3

Артикул

Название

Примечание

Количество

1

7870603

BOLT,Sq Nk, 5/8" - 11 x 5 1/2", Gr 5

5/8-11 x 5-1/2 RHSNB

4шт.

2

700703922

LOCK NUT,Flg, 5/8"-11

5/8-11 HFTLN GR/G

8шт.

3

7870215

CARRIAGE BOLT,Short NK, 5/8"-11 x 3 1/2", G5

5/8-11 x 3-1/2 RHSNB

4шт.

4

NLS

NO LONGER SERVICED

5/8 HARDENED PLAIN WASHER

4шт.

5

6534580

STRAP

4шт.

6

1666148

GUIDE

WA - left

2шт.

7

1666189

GUIDE

WA - right

2шт.

8

6534507

SPACER

4шт.

9

6539985

MOUNTING PARTS

MOUNTING

2шт.

10

7883317

SCREW,Hex Washer, 5/16" - 18 x 1/2"

5/16-18 x 1/2 HWHMS

12шт.

11

77065

LUBE NIPPLE,1/8"-27 x .66 lg

1/8-27 NPTF STR ZERK

4шт.

12

700706683

HYD CONNECTOR

CONNECTOR - male (Includes item 15)

4шт.

13

700113862

HOSE,50.00'

Line, , Lube 50 Foot Bulk 50.00'

1шт.

14

700706682

FRONT AXLE

ELBOW - male (Includes item 15)

4шт.

15

700706679

FERRULE

SLEEVE - ball

10шт.

16

7703515

BOLT,Hex, 3/8" - 16 x 3", Gr 5

3/8-16 x 3 C

8шт.

17

704734

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

8шт.

18

700706843

HYD CONNECTOR

UNION (Includes item 15)

4шт.

Выбрано товаров: 18
