Запчасти Case IH 8725 (03-02) - CUTOFF DISC MOUNTING, LUBE AND GUIDE ASSEMBLY (09) - CHASSIS

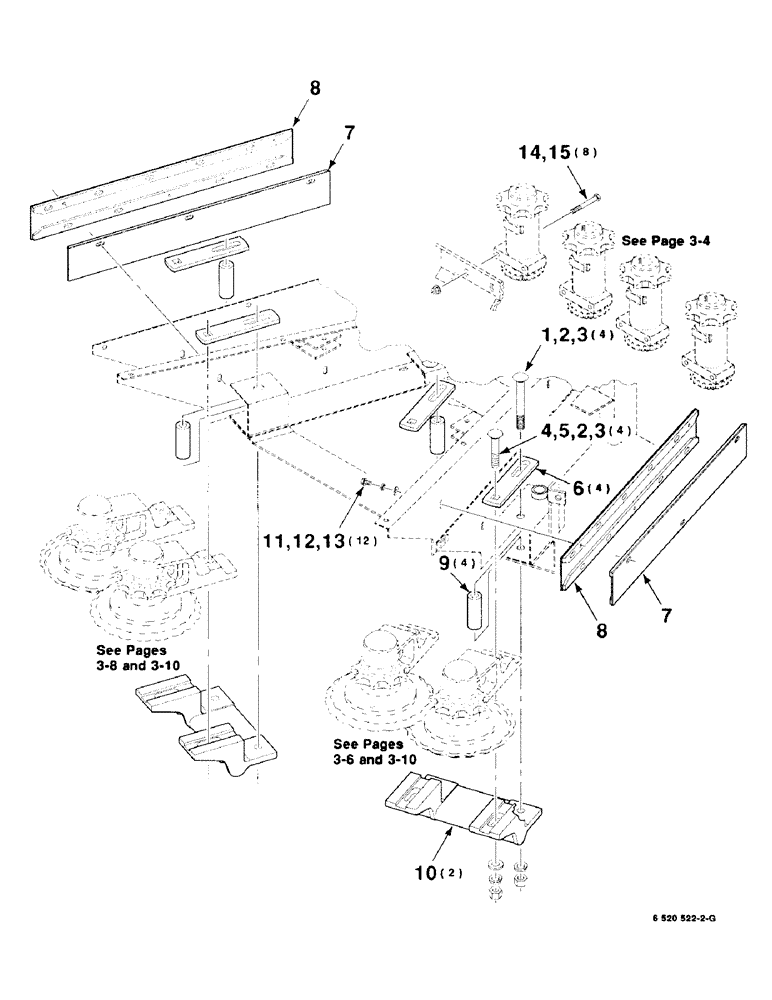

Схема запчастей Case IH 8725 - (03-02) - CUTOFF DISC MOUNTING, LUBE AND GUIDE ASSEMBLY (09) - CHASSIS
8
2
11
3
7
3
10
4
5
1
7
12
2
8
9
13
6
14
15

Артикул

Название

Примечание

Количество

1

7870603

BOLT,Sq Nk, 5/8" - 11 x 5 1/2", Gr 5

5/8-11 X 5-1/2 RHSNB

4шт.

2

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

3

425-1010

NUT,5/8"-11, G5

8шт.

4

433-1056

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 3 1/2", Gr 5

5/8-11 X 3-1/2 RHSNB

4шт.

5

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

4шт.

6

6534580

STRAP

4шт.

7

1666148

GUIDE

WA - left

2шт.

8

1666189

GUIDE

WA - right

2шт.

9

6534507

SPACER

4шт.

10

6539985

MOUNTING PARTS

MOUNTING

2шт.

11

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

C Hex, 5/16"-18 x 3/4", G5, Full Thd

12шт.

12

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

12шт.

13

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

12шт.

14

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

8шт.

15

231-5146

FLANGE NUT,3/8"-16

8шт.

Выбрано товаров: 15
