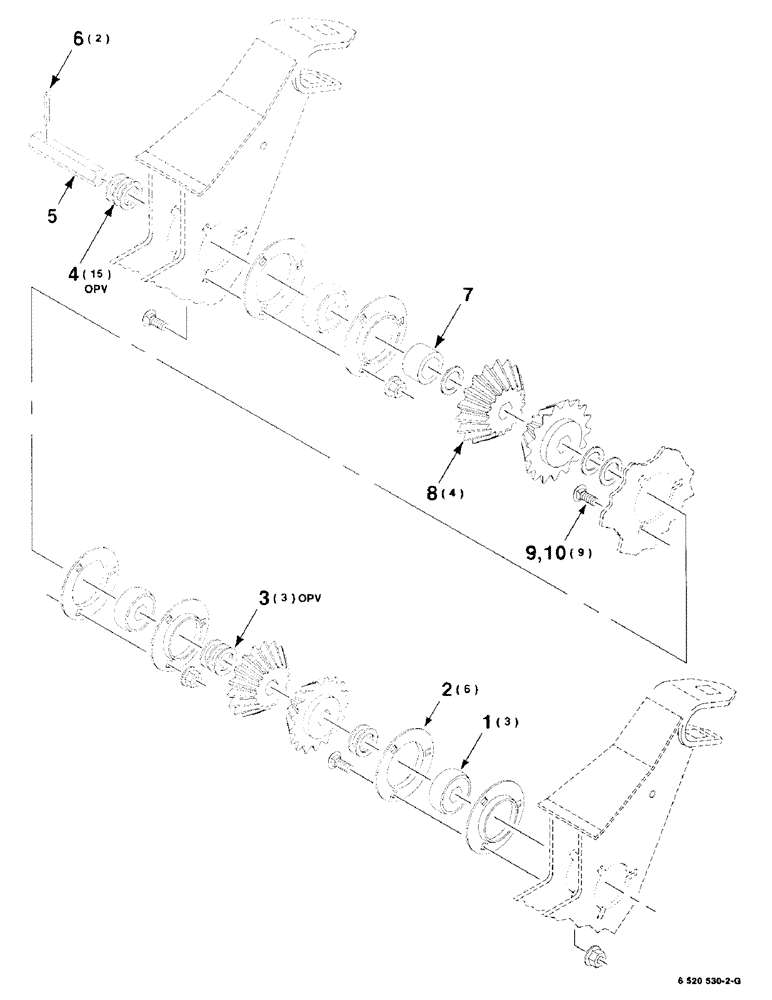

Запчасти Case IH 8725 (02-06) - DRIVE ASSEMBLY, 38" ROW (09) - CHASSIS

1

211587C91

BALL BEARING,1.586" ID x 62 mm OD x 24 mm

BEARING

3шт.

2

H747188

FLANGED BEARING,112.73 mm OD x 8.74 mm

FLANGE

6шт.

3

495-81205

WASHER,32.54mm ID x 50.8mm OD x 1.7mm Thk

1-1/4 X 18 GAUGE NRMB

3шт.

4

495-81205

WASHER,32.54mm ID x 50.8mm OD x 1.7mm Thk

1-1/4 X 14 GAUGE NRMB

15шт.

5

6295778

SHAFT

1шт.

6

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

2шт.

7

6535181

SPACER

1шт.

8

7745540

GEAR

4шт.

9

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

9шт.

10

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

9шт.
