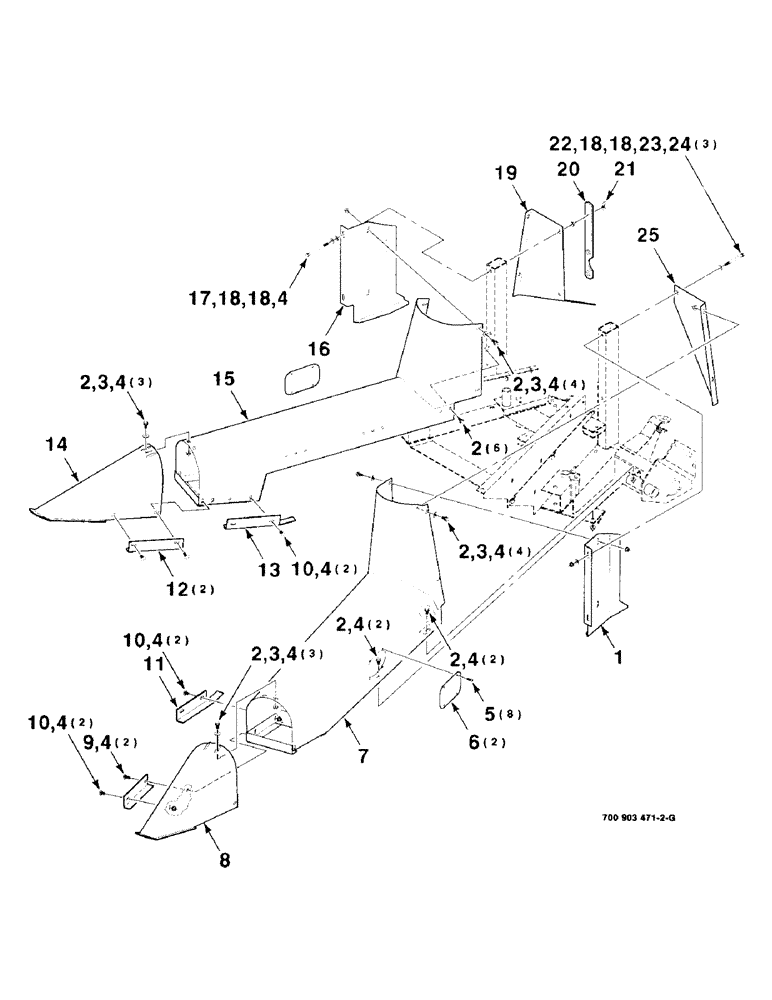

Запчасти Case IH 8725 (07-06) - SNOUT SHIELDS ASSEMBLY, 30" ROW (09) - CHASSIS

1

6535496

DEFLECTOR

- rear, left

1шт.

2

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

24шт.

3

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

27шт.

4

121-3

SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

8шт.

5

389668

PLATE

- cover

2шт.

6

6534853

DIVIDER ASSY.

DIVIDER WA - left

1шт.

7

496-81010

WASHER

3/8 HARDENED WIDE PLAIN WASHER

14шт.

8

6295133

DEFLECTOR

NOSE WA - left

1шт.

9

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

2шт.

10

111-360

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 3/4", G5

6шт.

11

6535124

ANGLE

- left

1шт.

12

6534267

ANGLE

- wear, outer

2шт.

13

6534259

ANGLE

- right

1шт.

14

6295166

DEFLECTOR

NOSE WA - right

1шт.

15

6534028

DIVIDER ASSY.

DIVIDER WA - right

1шт.

16

6535504

DEFLECTOR

- rear, right

1шт.

17

413-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

3/8-16 x 4-1/2 C

1шт.

18

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

8шт.

19

6535520

BRACE

SHIELD - right

1шт.

20

1162023

SPECIAL WRENCH

WRENCH - special

1шт.

21

129-410

WING NUT,3/8"-16

3/8-16 WING NUT

1шт.

22

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

3/8-16 X 4 C

3шт.

23

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

24

425-106

NUT,3/8"-16, Cl 5

3шт.

25

6535512

BRACE

SHIELD - left

1шт.
