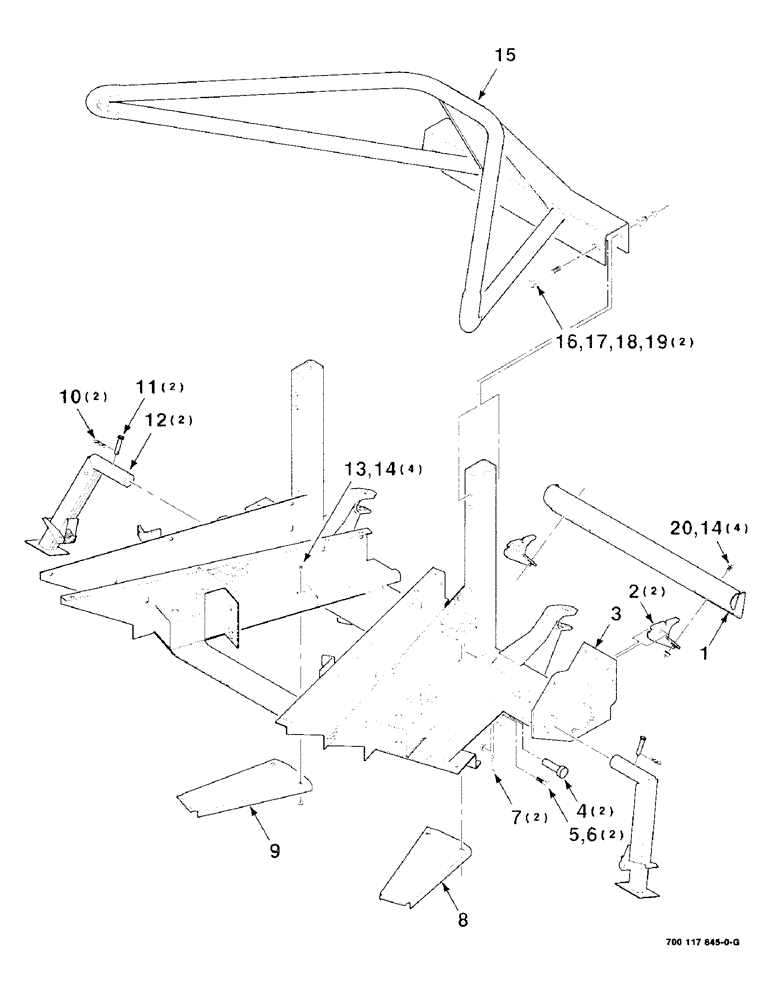

Запчасти Case IH 8725 (07-02) - HEADER FRAME AND GATHERER ASSEMBLIES, 30" ROW (09) - CHASSIS

1

1663996

TRAY

1шт.

2

1663921

BRACKET

WA

2шт.

3

6535199

HEAD

ER WA

1шт.

4

480255R1

HEADED PIN,1" x 2 3/16"

1 X 2 CLEVIS PIN

2шт.

5

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

6

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

2шт.

7

432-1224

COTTER PIN,3/16" x 1-1/2"

3/16" x 1 1/2"

2шт.

8

6535421

PAN

- through, left

1шт.

9

6535439

PAN

- through, right

1шт.

10

S120261

PIN

.148 WIRE HAIR PIN COTTER

2шт.

11

27-6225

CLEVIS PIN,3/8" x 2 1/4"

3/8 X 2-1/8 CLEVIS PIN

2шт.

12

6897979

WASHER

STAND WA

2шт.

13

111-360

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 3/4", G5

4шт.

14

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN

8шт.

15

6535389

GATHERER

WA

1шт.

16

413-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

1/2-13 X 4-1/2 C

2шт.

17

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

2шт.

18

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

19

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

20

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

4шт.
