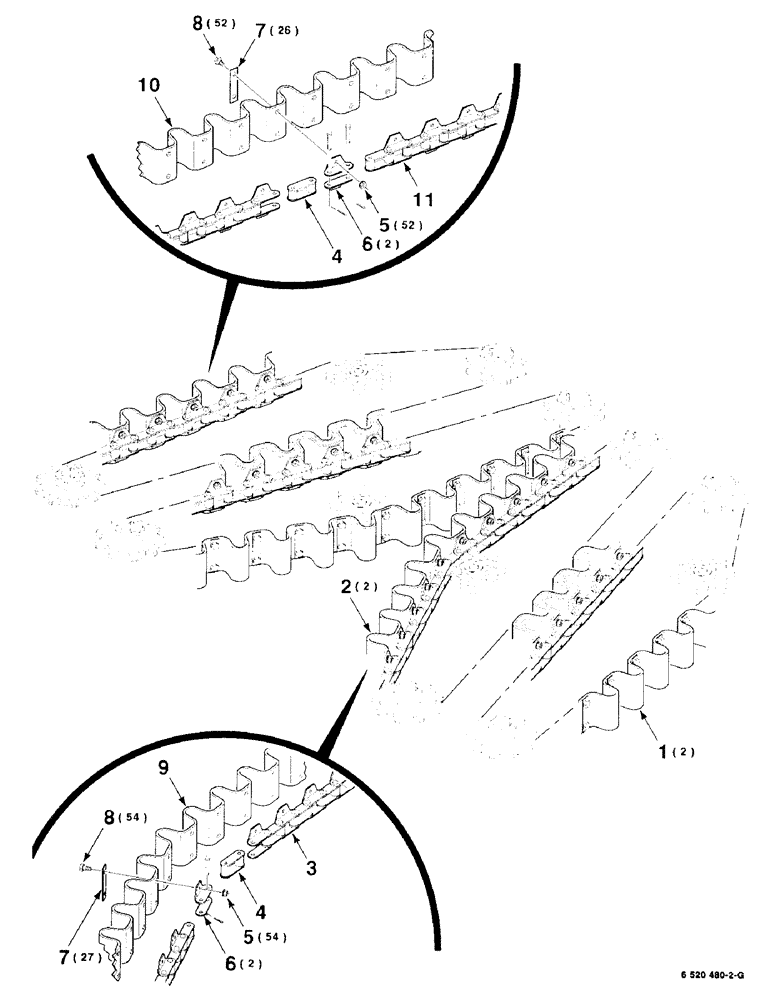

Запчасти Case IH 8725 (03-16) - GATHERING CHAIN ASSEMBLY (09) - CHASSIS

1

6534515

CHAIN (CE)

CHAIN ASM. - outer (complete with belt) (includes items 4, 5, 6, 7, 8, 10 and 11)

2шт.

2

6534531

CHAIN (CE)

CHAIN ASM. - inner (complete with belt) (includes items 3, 4, 5, 6, 7, 8 and 9)

2шт.

3

849810

CHAIN (AG)

CHAIN - roller (52 pitches)

1шт.

4

7085426

LINK

- roller

2шт.

5

1703354

NUT

1/4-20 HFTLN GR/G

106шт.

6

47811

BASE PLATE

LINK - attachment (includes pins)

4шт.

7

6870414

PLATE

- washer

53шт.

8

8701765

SPECIAL BOLT,Shoulder, Spcl, 1/4" - 20 x 0.62", Gr 5

BOLT - shoulder, special

106шт.

9

828384

BELT,76.20 mm W x 3666.00 mm L

1шт.

10

828392

BELT,76.20 mm W x 3526.00 mm L

1шт.

11

849802

CHAIN (AG)

CHAIN - roller (54 pitches)

1шт.
