Запчасти Case IH 8725 (03-14) - GATHERING CHAIN TENSIONER ASSEMBLY, 38" ROW (09) - CHASSIS

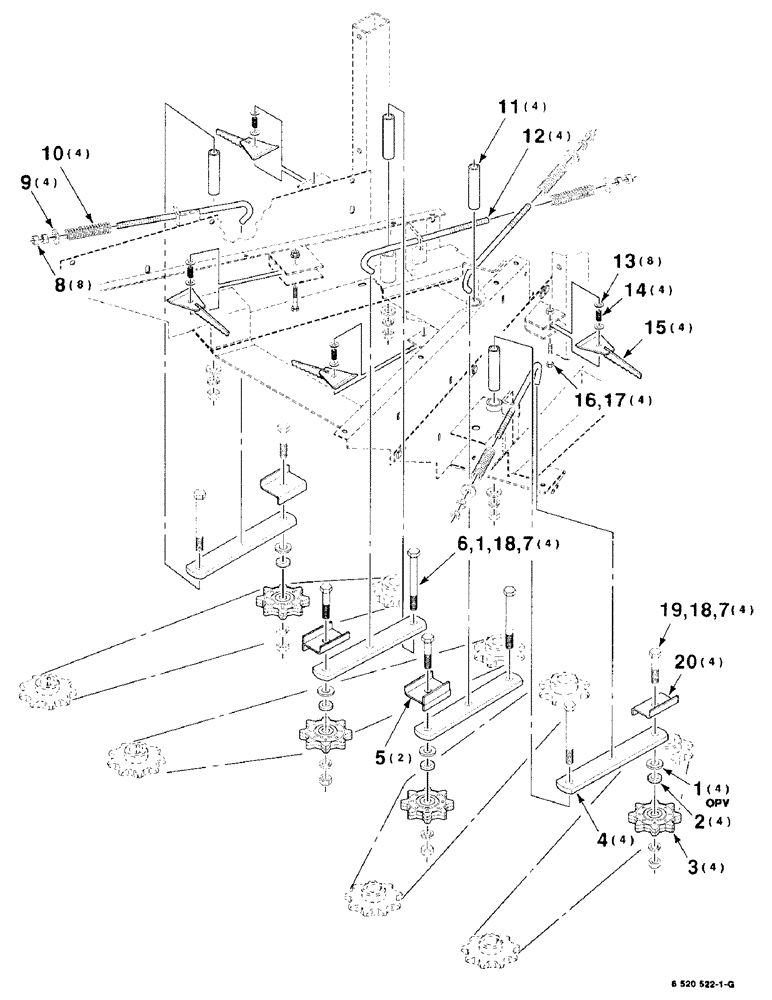

Схема запчастей Case IH 8725 - (03-14) - GATHERING CHAIN TENSIONER ASSEMBLY, 38" ROW (09) - CHASSIS
6
7
11
13
15
18
2
10
1
3
7
9
14
17
5
20
8
18
19
12
1
16
4

Артикул

Название

Примечание

Количество

1

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

8шт.

2

NLS

NO LONGER SERVICED

4шт.

3

849844

DRIVE SPROCKET

SPROCKET - idler

4шт.

4

6534549

ARM

- idler

4шт.

5

6534457

BRACKET

WA - ratchet

2шт.

6

413-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

5/8-11 X 6 C

4шт.

7

425-1010

NUT,5/8"-11, G5

8шт.

8

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

9

385625

WASHER

4шт.

10

858019

SPRING

- compression

4шт.

11

6534564

SPACER

4шт.

12

6534556

ROD

- spring

4шт.

13

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

8шт.

14

58511

COMPRESSION SPRING

SPRING - compression

4шт.

15

6534432

RATCHET

WA

4шт.

16

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

4шт.

17

230-4216

LOCK NUT,3/8"-16, GA

3/8-16 HCLN

4шт.

18

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

19

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

4шт.

20

6534473

BRACKET

- ratchet

4шт.

Выбрано товаров: 20
