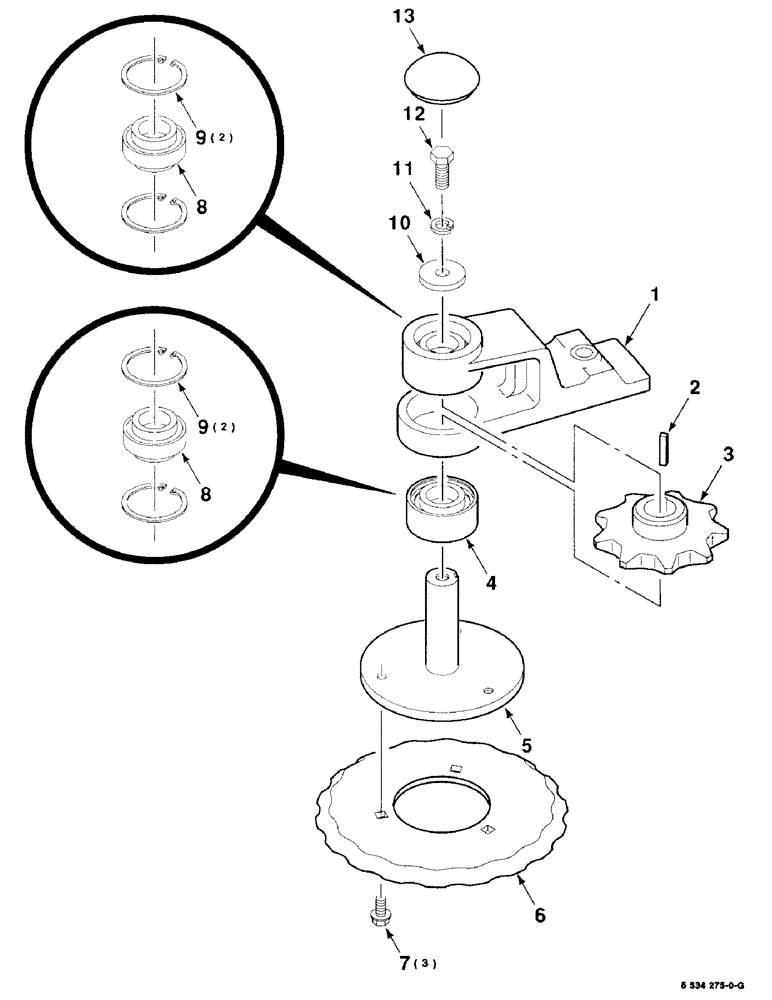

Запчасти Case IH 8725 (03-08) - SPINDLE ASSEMBLY, INNER (09) - CHASSIS

1

6534317

BEARING ASSY

MOUNT - bearing (includes items 8 & 9)

1шт.

2

61713

KEY

1/4 X 1/4 X 1-3/8 STRAIGHT KEY

1шт.

3

850206

DRIVE SPROCKET

SPROCKET

1шт.

4

6534358

BEARING ASSY

ASM. (includes items 8 & 9)

1шт.

5

6534374

SPINDLE

WA

1шт.

6

748236

DISC

- cutoff

1шт.

7

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

3шт.

8

563883R91

BALL BEARING,31.75mm ID x 62mm OD x 16mm W

BEARING - cylinder

2шт.

9

52035

RING, SNAP

RING - retaining

4шт.

10

282269

WASHER

1шт.

11

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

12

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

1шт.

13

518842R1

CAP

- hub

1шт.
